Wire thimbles — Blue painted, With gusset (G712K–G760K)

Available on request

Blue painted wire thimbles in 14 sizes.

Specifications

Missing a spec? It's available on request — send us your requirement.

14 sizes available. Quote by part number, or send us the load and we'll size it.

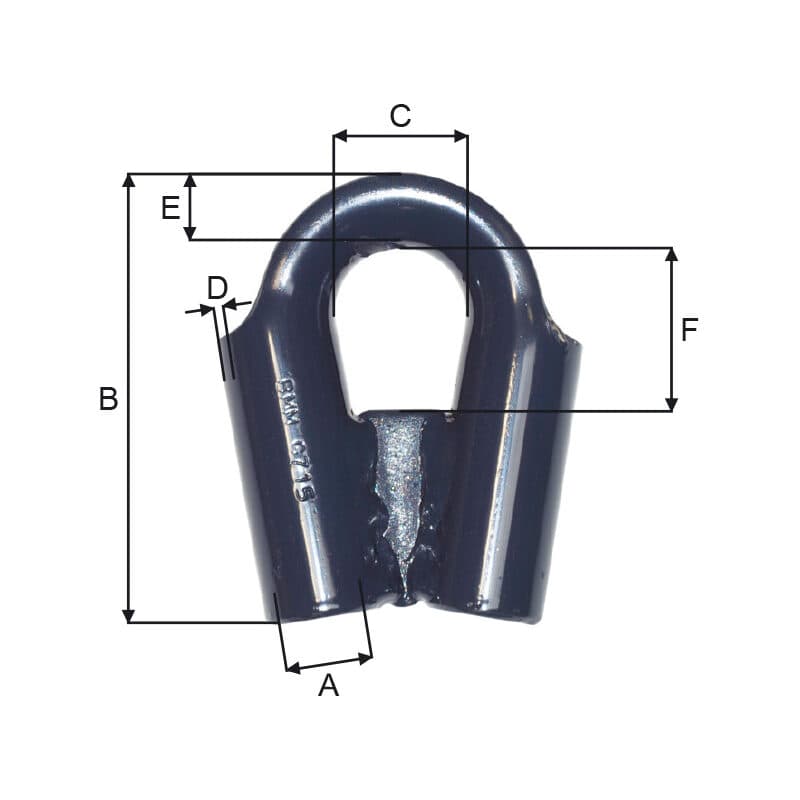

Wire thimbles — Blue painted, With gusset (G712K–G760K) — sizes and part numbers
Part no.	A(mm)	B(mm)	C(mm)	D(mm)	E(mm)	F(mm)	Weight(kg)	For wire max.(mm)
G712K	12	84	23	4.0	8	24	0.36	10
G715K	15	95	27	5.0	10	31	0.52	12
G717K	17	100	27	5.0	10	38	0.55	14
G719K	20	112	32	5.0	12	46	0.65	16
G722K	22	125	35	5.0	15	47	0.90	18
G725K	25	150	45	6.3	16	61	1.26	22
G728K	28	157	45	7.0	16	56	1.64	24
G730K	30	170	47	7.0	18	68	2.02	25
G735K	35	190	60	7.0	22	73	2.50	32
G740K	40	212	70	7.0	36	80	3.70	36
G745K	45	228	70	7.0	27	94	3.71	38
G750K	50	255	75	7.0	35	97	4.65	42
G755K	55	268	80	7.0	31	99	4.90	48
G760K	60	270	100	7.0	37	120	6.10	54

Scroll the table sideways for all 9 columns.
