Wire thimbles — Blue painted, With gusset (G215K–G235K)

Available on request

Blue painted wire thimbles in 8 sizes.

Specifications

Missing a spec? It's available on request — send us your requirement.

8 sizes available. Quote by part number, or send us the load and we'll size it.

Wire thimbles — Blue painted, With gusset (G215K–G235K) — sizes and part numbers

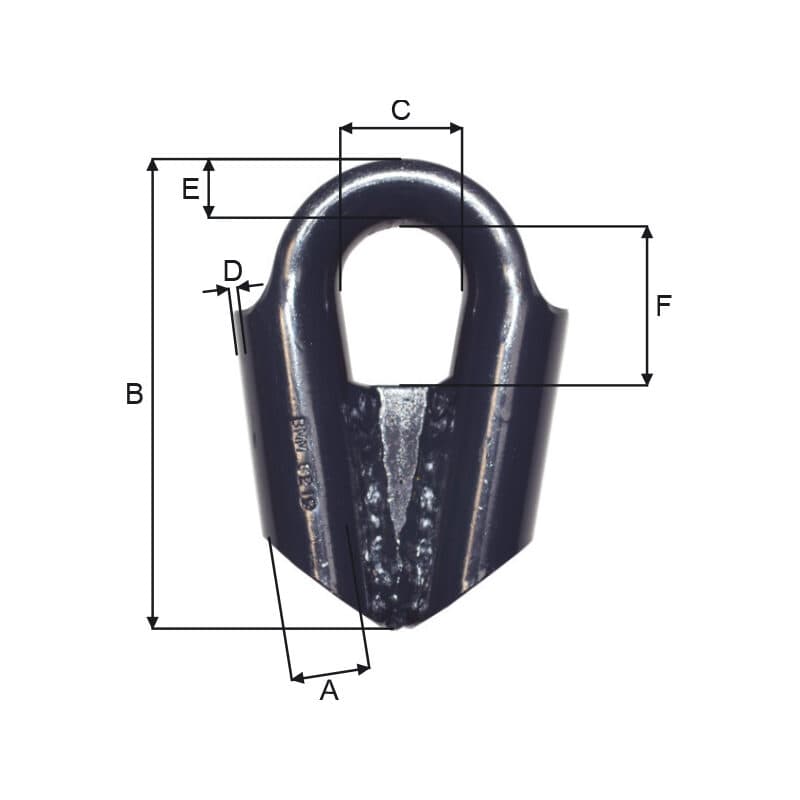

Part no.	A(mm)	B(mm)	C(mm)	D(mm)	E(mm)	F(mm)	Weight(kg)	For wire max.(mm)
G215K	15	109	27	5.0	10	49	0.46	12
G217K	17	115	27	5.0	10	40	0.54	14
G219K	19	125	32	5.0	12	43	0.67	16
G222K	22	140	35	5.0	15	58	0.80	18
G225K	25	158	45	6.3	16	59	1.36	22
G228K	28	176	45	7.0	16	61	1.65	24
G230K	30	195	47	7.0	18	78	2.00	26
G235K	35	210	60	7.0	22	93	2.73	32

Scroll the table sideways for all 9 columns.
