Wire thimbles — Blue painted (G712–G760)

Available on request

Blue painted wire thimbles in 14 sizes.

Specifications

Material / finish	Blue painted
Sizes tabulated	14

Missing a spec? It's available on request — send us your requirement.

14 sizes available. Quote by part number, or send us the load and we'll size it.

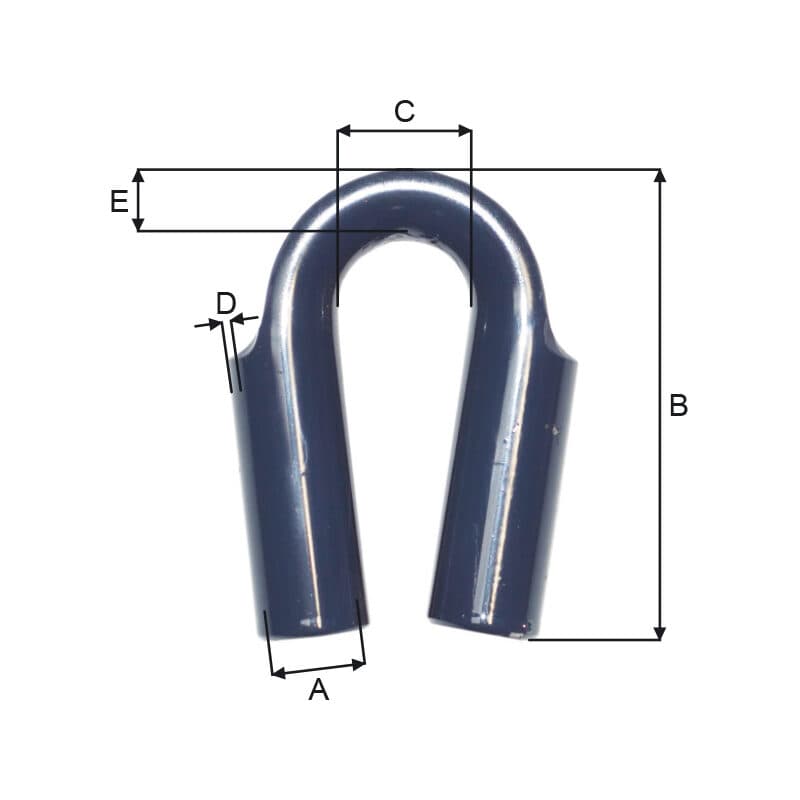

Wire thimbles — Blue painted (G712–G760) — sizes and part numbers
Part no.	A(mm)	B(mm)	C(mm)	D(mm)	E(mm)	Weight(kg)	For wire max.(mm)
G712	12	84	23	4.0	8	0.21	10
G715	15	95	27	5.0	10	0.40	12
G717	17	100	27	5.0	10	0.48	14
G719	20	112	32	5.0	12	0.60	16
G722	22	125	35	5.0	15	0.71	18
G725	25	150	45	6.3	16	1.21	22
G728	28	157	45	7.0	16	1.60	24
G730	30	170	47	7.0	18	1.91	25
G735	35	190	60	7.0	22	2.36	32
G740	40	212	70	7.0	36	3.46	36
G745	45	228	70	7.0	27	3.54	38
G750	50	255	75	7.0	35	4.20	42
G755	55	268	95	7.0	31	4.80	48
G760	60	270	100	7.0	37	6.10	54

Scroll the table sideways for all 8 columns.
