Wire thimbles — Blue painted (G215–G235)

Available on request

Blue painted wire thimbles in 8 sizes.

Specifications

Material / finish	Blue painted
Sizes tabulated	8

Missing a spec? It's available on request — send us your requirement.

8 sizes available. Quote by part number, or send us the load and we'll size it.

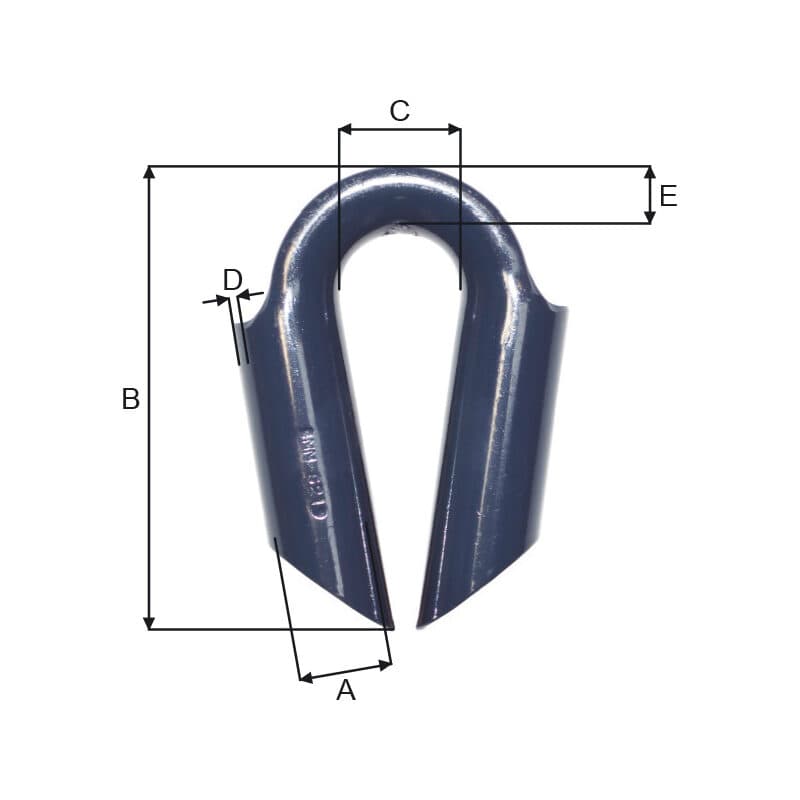

Wire thimbles — Blue painted (G215–G235) — sizes and part numbers
Part no.	A(mm)	B(mm)	C(mm)	D(mm)	E(mm)	Weight(kg)	For wire max.(mm)
G215	15	109	27	5.0	10	0.42	12
G217	17	115	27	5.0	10	0.50	14
G219	19	125	32	5.0	12	0.60	16
G222	22	140	35	5.0	15	0.75	18
G225	25	158	45	6.3	16	1.23	22
G228	28	176	45	7.0	16	1.54	24
G230	30	195	47	7.0	18	1.82	26
G235	35	210	60	7.0	22	2.40	32

Scroll the table sideways for all 8 columns.
