Thimbles — Stainless steel

Available on request

Stainless steel thimbles in 18 sizes.

Specifications

Material / finish	Stainless steel
Sizes tabulated	18

Missing a spec? It's available on request — send us your requirement.

18 sizes available. Quote by part number, or send us the load and we'll size it.

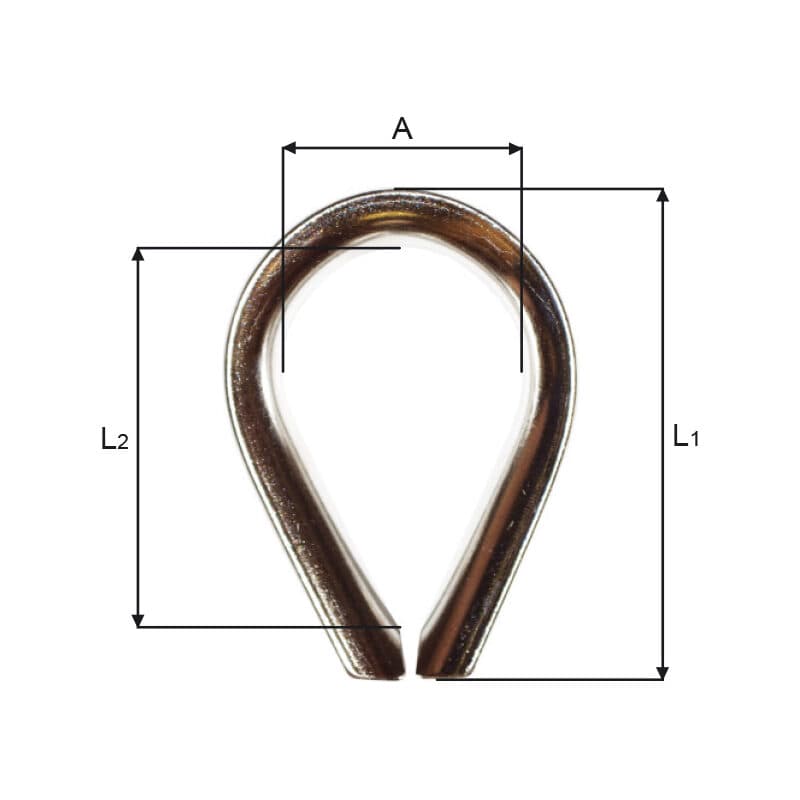

Thimbles — Stainless steel — sizes and part numbers
Part no.	Size	L1(mm)	L2(mm)	A(mm)	Wire dia.(mm)	Material(mm)	Weight(kg/100)
G110002	7/8”	22	15	9	3	0.8	0.2
G110003	1”	22	16	10	4	0.8	0.3
G110004	1 1/8”	24	17	11	5	1.0	0.5
G110005	1 1/4”	32	21	13	6	1.0	0.7
G110006	1 1/2”	35	25	15	7	1.2	1.2
G110007	1 3/4”	45	33	17	8	1.5	1.5
G110008	2”	50	38	22	9	2.0	2.7
G110009	2 1/4”	58	41	24	10	2.0	2.9
G110010	2 1/2”	65	48	27	11	2.0	5.2
G110012	2 3/4”	74	56	34	14	2.0	5.5
G110014	3”	77	57	38	16	3.0	11.0
G110016	3 1/2”	87	65	40	18	3.0	12.0
G110018	4”	100	77	44	20	3.5	21.5
G110020	4 1/2”	110	86	52	22	3.5	27.0
G110022	5”	137	89	56	24	4.5	37.5
G110026	6”	147	117	65	28	5.0	62.0
G110028	7”	187	135	76	30	5.0	76.0
G110032	8”	215	160	88	34	5.0	100.0

Scroll the table sideways for all 8 columns.
