Thimbles — Hot dip galvanized

Available on request

Hot dip galvanized thimbles in 18 sizes.

Specifications

Material / finish	Hot dip galvanized
Sizes tabulated	18

Missing a spec? It's available on request — send us your requirement.

18 sizes available. Quote by part number, or send us the load and we'll size it.

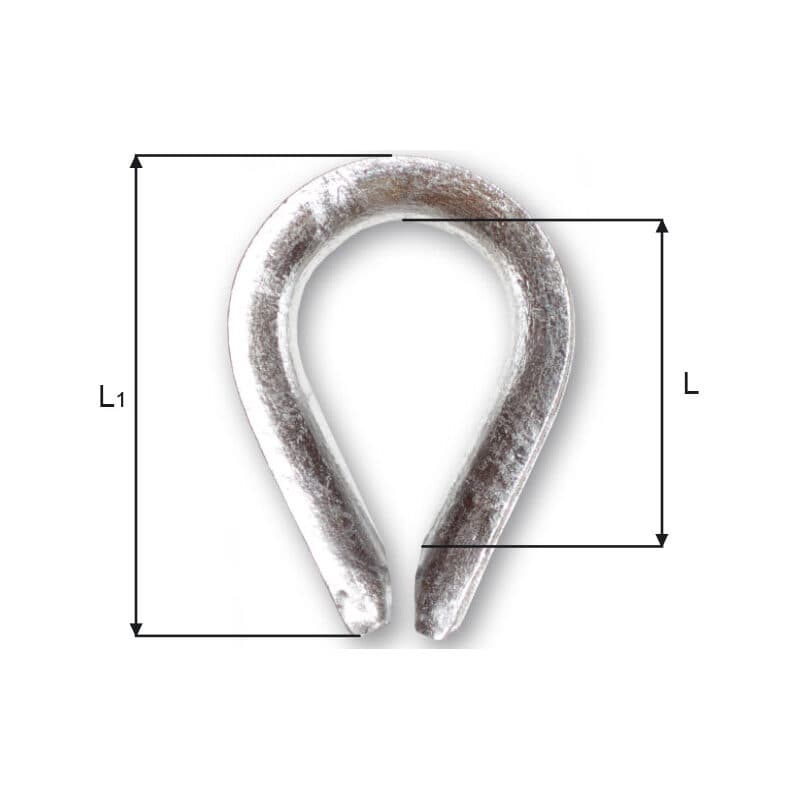

Thimbles — Hot dip galvanized — sizes and part numbers
Part no.	Groove(mm)	Wire dia(mm)	L(mm)	L1	Weight(kg/100)
GK210004	4	3	21	1 1/4”	1.0
GK210006	6	5	26	1 3/4”	2.0
GK210008	8	7	33	2”	3.0
GK210010	10	9.0	38	2 1/4”	6.0
GK210012	12	10/11.0	45	2 1/2”	9.0
GK210014	14	12/13.0	51	3”	12.0
GK210016	16	15.0	58	3 1/4”	18.0
GK210018	18	16.0	64	3 3/4”	31.0
GK210020	20	18.0	72	4”	35.0
GK210022	22	20.0	80	4 1/2”	42.0
GK210024	24	22.0	90	5”	68.0
GK210026	26	24.0	99	5 1/2”	74.0
GK210028	28	26.0	112	6”	95.0
GK210030	30	28.0	120	6 1/2”	107.0
GK210032	32	30.0	128	7”	150.0
GK210034	34	32.0	152	8”	195.0
GK210036	36	34.0	160	8 1/2”	213.0
GK210038	38	36.0	176	9”	240.0

Scroll the table sideways for all 6 columns.
