Sling hooks EGKN — With latch

Available on request

Sling hooks EGKN in 6 sizes, 1.5–16 ton WLL.

Specifications

Missing a spec? It's available on request — send us your requirement.

6 sizes available. Quote by part number, or send us the load and we'll size it.

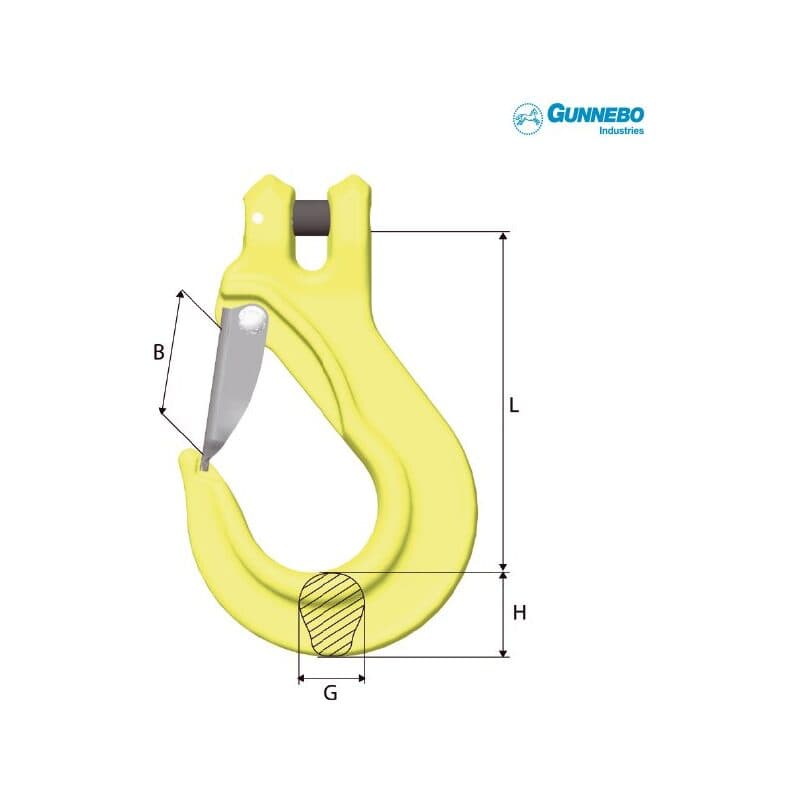

Sling hooks EGKN — With latch — sizes and part numbers
Part no.	WLL 4:1(ton)	L(mm)	B(mm)	G(mm)	H(mm)	Weight(kg)
Q-EGKN-06-10	1.5	86	24.5	17	20	0.4
Q-EGKN-08-10	2.5	95	28.0	17	23	0.5
Q-EGKN-10-10	4.0	121	35.0	23	31	1.1
Q-EGKN-13-10	6.7	145	42.0	28	38	2.2
Q-EGKN-16-10	10.0	170	52.0	36	46	4.0
Q-EGKN-20-10	16.0	209	61.0	42	60	7.6

Scroll the table sideways for all 7 columns.
