Safety hooks GBK

Available on request

Safety hooks GBK in 5 sizes, 1.5–10 ton WLL.

Specifications

Working load limit	1.5–10 ton
Sizes tabulated	5

Missing a spec? It's available on request — send us your requirement.

5 sizes available. Quote by part number, or send us the load and we'll size it.

Safety hooks GBK — sizes and part numbers

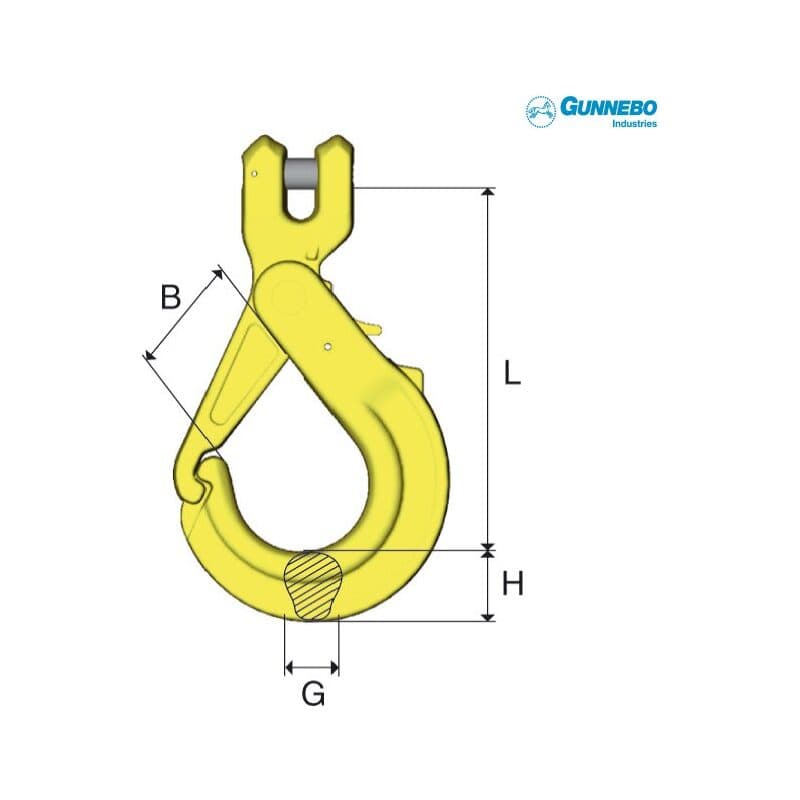

Part no.	WLL 4:1(ton)	L(mm)	B(mm)	G(mm)	H(mm)	Weight(kg)
Q-GBK-06-10	1.5	87	26	15	17	0.4
Q-GBK-08-10	2.5	119	36	20	22	0.8
Q-GBK-10-10	4.0	150	47	22	29	1.4
Q-GBK-13-10	6.7	172	53	29	38	2.7
Q-GBK-16-10	10.0	208	68	30	45	4.4

Scroll the table sideways for all 7 columns.

Send specs, photos, drawings, or inspection and testing requests. Your reply comes from the branch that will do the work.
