Viking links — High tensile steel, Quenched and tempered, Forged

Available on request

Viking links in 4 sizes, 1.5–8 ton WLL.

Specifications

Configuration	High tensile steel, Quenched and tempered, Forged
Working load limit	1.5–8 ton
Sizes tabulated	4

Missing a spec? It's available on request — send us your requirement.

4 sizes available. Quote by part number, or send us the load and we'll size it.

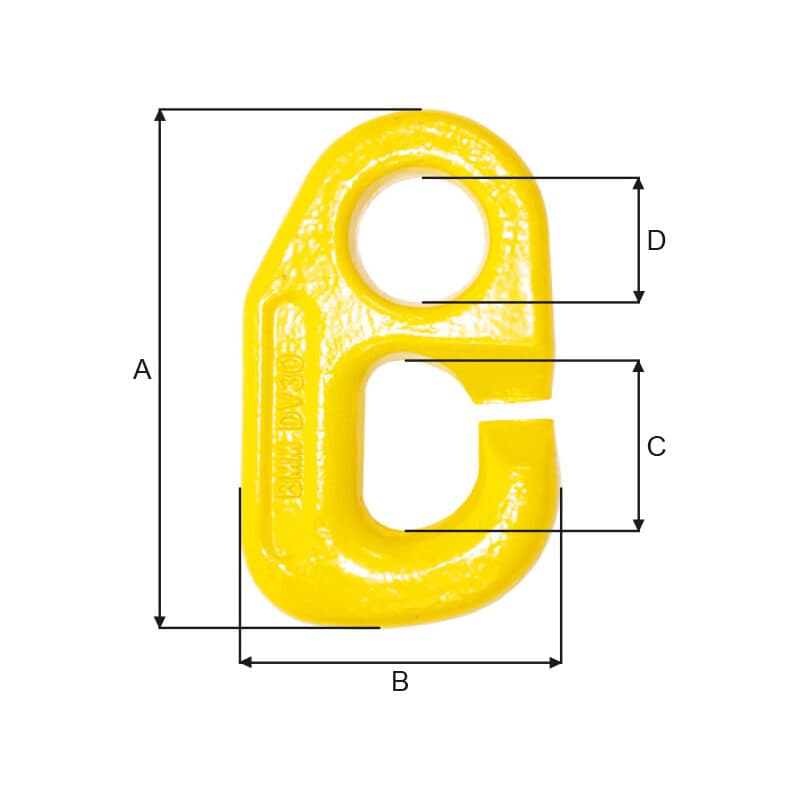

Viking links — High tensile steel, Quenched and tempered, Forged — sizes and part numbers
Part no.	WLL 5:1(ton)	A(mm)	B(mm)	C(mm)	D(mm)	Weight(kg)
DV15	1.5	102	61	27	27	0.39
DV30	3.0	115	70	29	30	0.70
DV50	5.0	136	83	40	34	1.30
DV80	8.0	150	95	41	42	2.05

Scroll the table sideways for all 7 columns.
