Hampidjan Canada

Three eye links

Available on request

Three eye links in 3 sizes, 1–5 ton WLL.

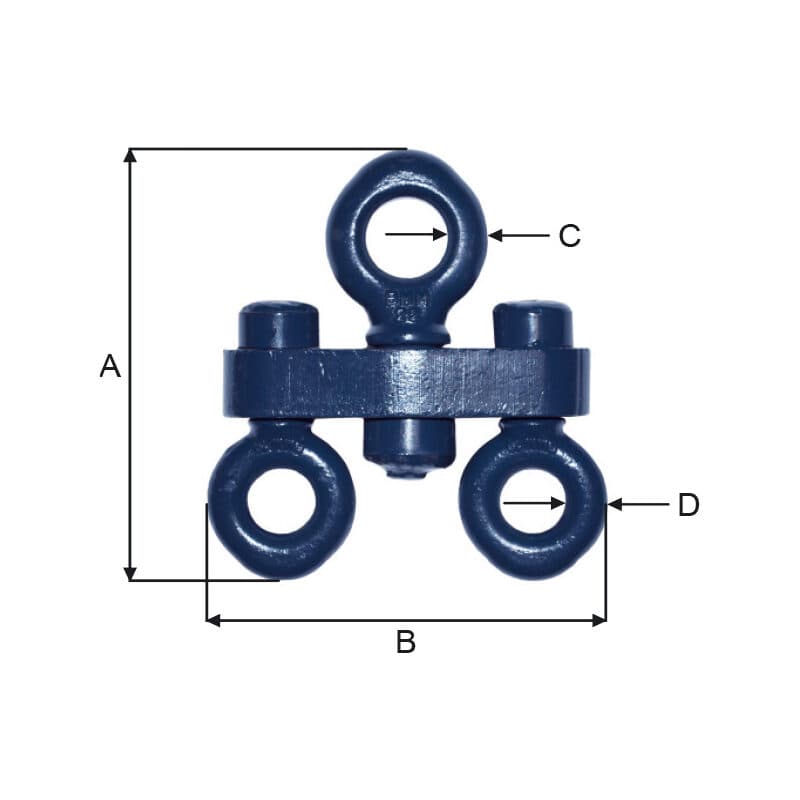

Three eye links — manufacturer dimension drawing

Specifications

Working load limit1–5 ton
Sizes tabulated3

Missing a spec? It's available on request — send us your requirement.

Sizes & part numbers

3 sizes available. Quote by part number, or send us the load and we'll size it.

Three eye links — sizes and part numbers
Part no.WLL 5:1(ton)A(mm)B(mm)C(mm)D(mm)Weight(kg)
E181.015516016121.5
E193.616015519162.1
E205.019517022193.9

Scroll the table sideways for all 7 columns.
