Quick links — Stainless steel (DQBX06SSOL–DQBX16SSOL)

Available on request

Stainless steel quick links in 7 sizes, 0.6–132 ton WLL.

Specifications

Missing a spec? It's available on request — send us your requirement.

7 sizes available. Quote by part number, or send us the load and we'll size it.

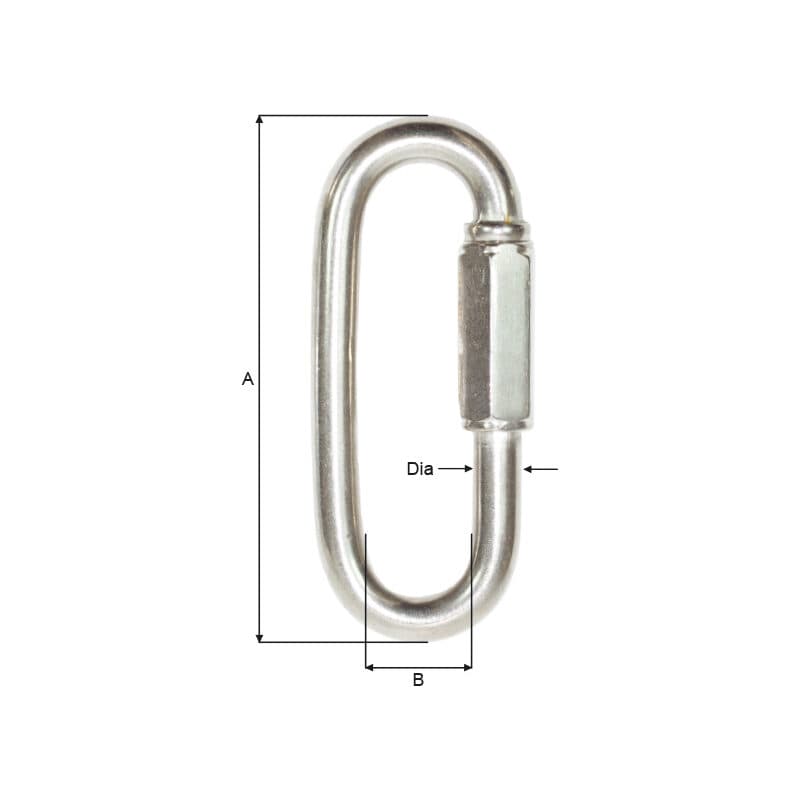

Quick links — Stainless steel (DQBX06SSOL–DQBX16SSOL) — sizes and part numbers
Part no.	Dia.(mm)	WLL 5:1(ton)	A(mm)	B(mm)	Opening(mm)	Weight(kg/100)
DQBX06SSOL	06	0.6	59	14	15.0	4.2
DQBX08SSOL	08	0.8	73	19	17.5	9.3
DQBX10SSOL	10	1.4	80	22	17.5	16.0
DQBX12SSOL	12	2.0	102	25	23.5	27.0
DQBX14SSOL	14	2.9	114	28	23.5	42.0
DQBX14SSOK	14	98	28	18	37.0	1
DQBX16SSOL	16	132	30	28	62.0	1

Scroll the table sideways for all 7 columns.
