Quick links — Stainless steel (DQ30SSO)

Available on request

Stainless steel quick links, 12 ton WLL.

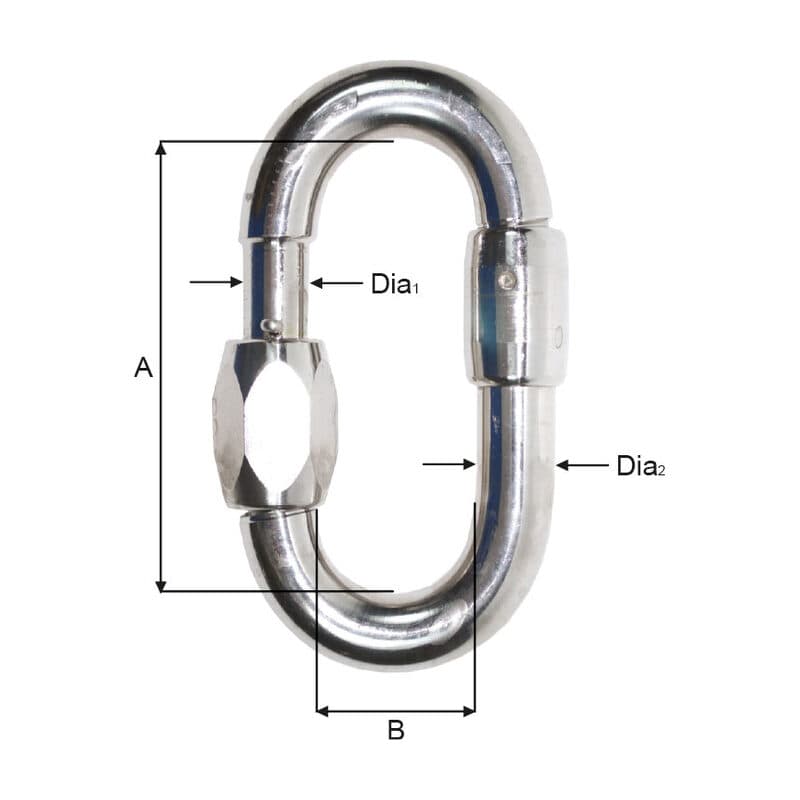

Quick links — Stainless steel (DQ30SSO) — manufacturer dimension drawing

Specifications

Material / finishStainless steel
Working load limit12 ton
Sizes tabulated1

Missing a spec? It's available on request — send us your requirement.

Sizes & part numbers

1 sizes available. Quote by part number, or send us the load and we'll size it.

Quick links — Stainless steel (DQ30SSO) — sizes and part numbers
Part no.Dia1(mm)Dia2(mm)WLL 5:1(ton)A(mm)B(mm)Weight(kg)
DQ30SSO253012.0170553.2

Scroll the table sideways for all 7 columns.

  • Split hole = dia of 5 mm
