Quick links — Stainless steel (DQ04SSOK–DQ22SSO)

Available on request

Stainless steel quick links in 14 sizes, 0.28–7 ton WLL.

Specifications

Missing a spec? It's available on request — send us your requirement.

14 sizes available. Quote by part number, or send us the load and we'll size it.

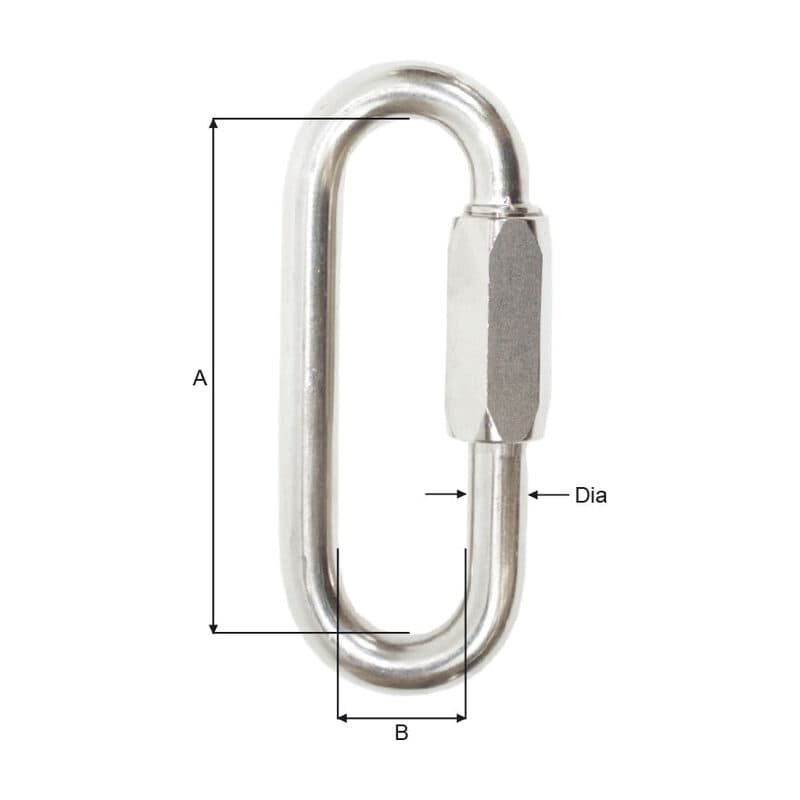

Quick links — Stainless steel (DQ04SSOK–DQ22SSO) — sizes and part numbers
Part no.	Dia.(mm)	WLL 5:1(ton)	A(mm)	B(mm)	Opening(mm)	Weight(kg/100)
DQ04SSOK	4	0.28	31	11	5.0	1.2
DQ04SSOL	4	0.28	45	11	11.5	1.5
DQ05SSOK	5	0.45	39	13	6.5	2.1
DQ05SSOL	5	0.45	52	13	13	2.6
DQ06SSOK	6	0.65	45	14	7.5	3.5
DQ06SSOL	6	0.58	59	14	15.0	4.2
DQ08SSOK	8	1.10	58	17	10.0	7.7
DQ08SSOL	8	0.98	72	17	18.0	9.3
DQ10SSO	10	1.60	85	20	20.0	16.0
DQ12SSO	12	2.20	100	23	23.0	27.0
DQ14SSO	14	3.10	115	27	27.0	42.0
DQ16SSO	16	4.00	150	38	28.0	75.0
DQ19SSO	19	5.50	175	43	32.0	120.0
DQ22SSO	22	7.00	210	60	36.0	190.0

Scroll the table sideways for all 7 columns.

Send specs, photos, drawings, or inspection and testing requests. Your reply comes from the branch that will do the work.
