Quick links — Galvanized (DQB06GAOL–DQB16GAOL)

Available on request

Galvanized quick links in 8 sizes, 0.35–2.5 ton WLL.

Specifications

Missing a spec? It's available on request — send us your requirement.

8 sizes available. Quote by part number, or send us the load and we'll size it.

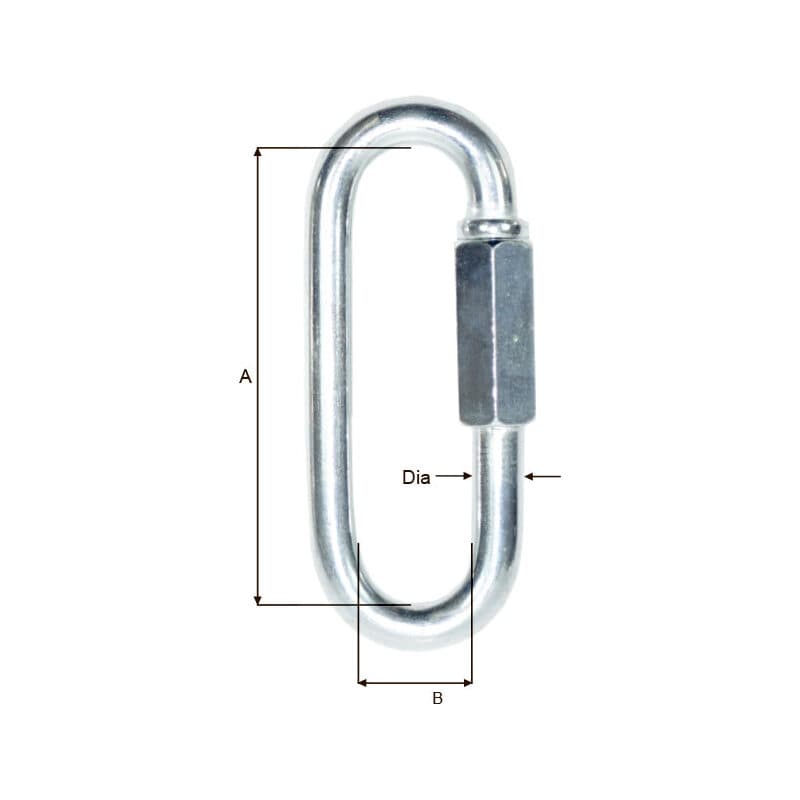

Quick links — Galvanized (DQB06GAOL–DQB16GAOL) — sizes and part numbers
Part no.	Dia.(mm)	WLL 5:1(ton)	A(mm)	B(mm)	Opening(mm)	Weight(kg/100)
DQB06GAOL	06	0.35	59	14	12.0	4.2
DQB08GAOK	08	0.70	58	17	10.0	5.6
DQB08GAOL	08	0.65	72	17	16.0	9.3
DQB10GAOL	10	1.00	82	22	18.0	17.0
DQB12GAOL	12	1.25	104	25	20.0	28.0
DQB14GAOL	14	1.75	112	30	25.0	41.0
DQB16GAOK	16	2.50	109	31	17	56.2
DQB16GAOL	16	2.50	130	31	28.0	62.0

Scroll the table sideways for all 7 columns.
