Quick links — Galvanized (DQ04GAO–DQ20GAO)

Available on request

Galvanized quick links in 12 sizes, 0.18–3.6 ton WLL.

Specifications

Missing a spec? It's available on request — send us your requirement.

12 sizes available. Quote by part number, or send us the load and we'll size it.

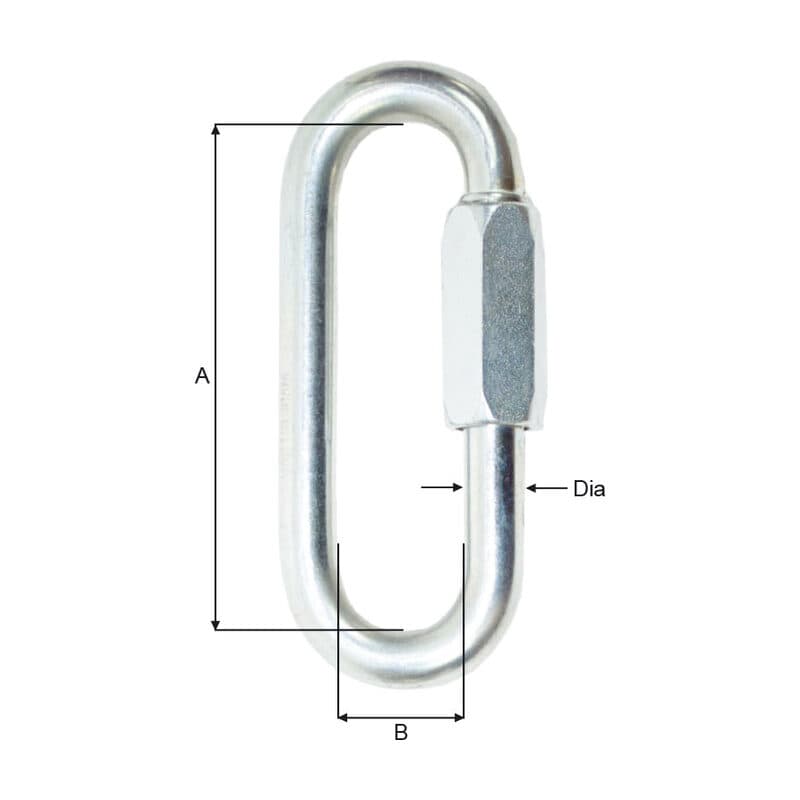

Quick links — Galvanized (DQ04GAO–DQ20GAO) — sizes and part numbers
Part no.	Dia.(mm)	WLL 5:1(ton)	A(mm)	B(mm)	Opening(mm)	Weight(kg/100)
DQ04GAO	4	0.18	31	11	5.5	1.2
DQ05GAO	5	0.28	39	13	6.5	2.1
DQ06GAOK	6	0.40	45	14	8.0	3.5
DQ06GAOL	6	0.35	59	14	15.0	4.2
DQ08GAOK	8	0.70	58	17	13.0	7.7
DQ08GAOL	8	0.65	72	17	18.0	9.3
DQ10GAO	10	1.00	85	20	20.0	16.0
DQ12GAO	12	1.25	100	23	23.0	27.0
DQ14GAO	14	2.00	115	27	27.0	42.0
DQ16GAO	16	2.50	129	30	30.0	62.5
DQ18GAO	18	3.00	143	33	33.0	88.0
DQ20GAO	20	3.60	159	36	37.0	122.0

Scroll the table sideways for all 7 columns.
