Masterlinks — Grade 10, Yellowpainted

Available on request

Grade 10 masterlinks in 16 sizes, 1.25–125 ton WLL.

Specifications

Missing a spec? It's available on request — send us your requirement.

16 sizes available. Quote by part number, or send us the load and we'll size it.

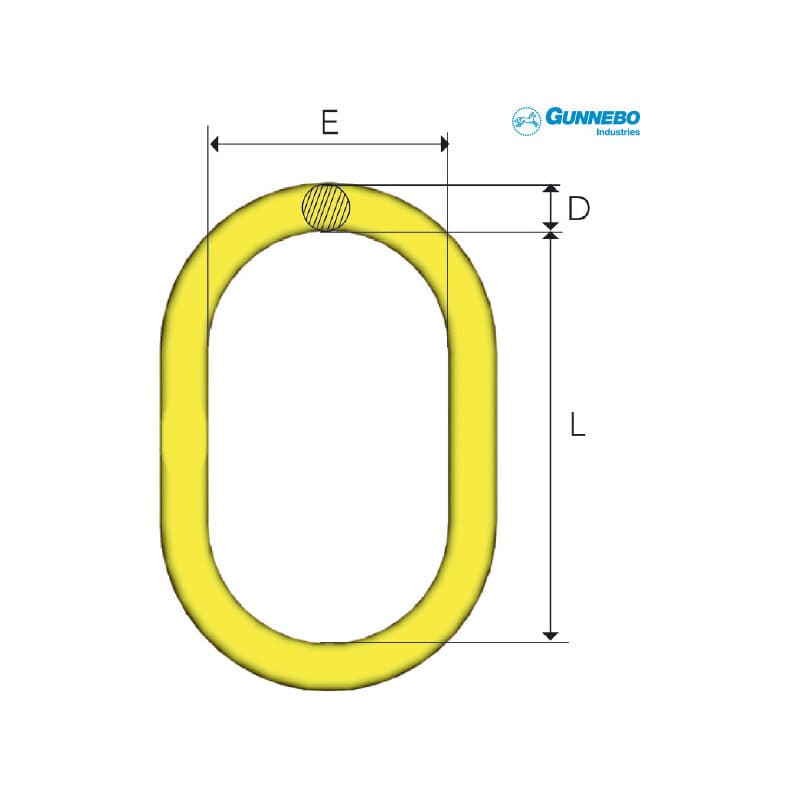

Masterlinks — Grade 10, Yellowpainted — sizes and part numbers
Part no.	WLL 5:1(ton)	L(mm)	E(mm)	D(mm)	Weight(kg)
M-6-10	1.25	100	60	11	0.2
M-86-10	2.5	120	60	13	0.37
M-108-10	4.0	140	80	17	0.8
M-13-10	5.4	150	90	19	1.0
M-1310-10	7.5	160	95	22	1.5
M-1613-10	10.0	190	110	28	2.8
M-19-10	12.0	200	120	30	3.5
M-2016-10	17.0	240	140	34	5.2
M-2220-10	25.0	250	150	40	7.3
M-2622-10	28.0	250	150	42	7.8
M-32-10	33.0	300	180	45	11.7
M-3226-10	43.0	300	200	50	14.8
M-3632-10	56.0	350	200	55	20.7
M-4536-10	70.0	375	210	60	26.4
M-90T-10	90.0	450	250	70	42.8
M-125T-10	125.0	450	260	80	57.0

Scroll the table sideways for all 6 columns.
