Master links with Sublinks MT

Available on request

Master links with Sublinks MT in 10 sizes, 3.5–90 ton WLL.

Specifications

Working load limit	3.5–90 ton
Sizes tabulated	10

Missing a spec? It's available on request — send us your requirement.

10 sizes available. Quote by part number, or send us the load and we'll size it.

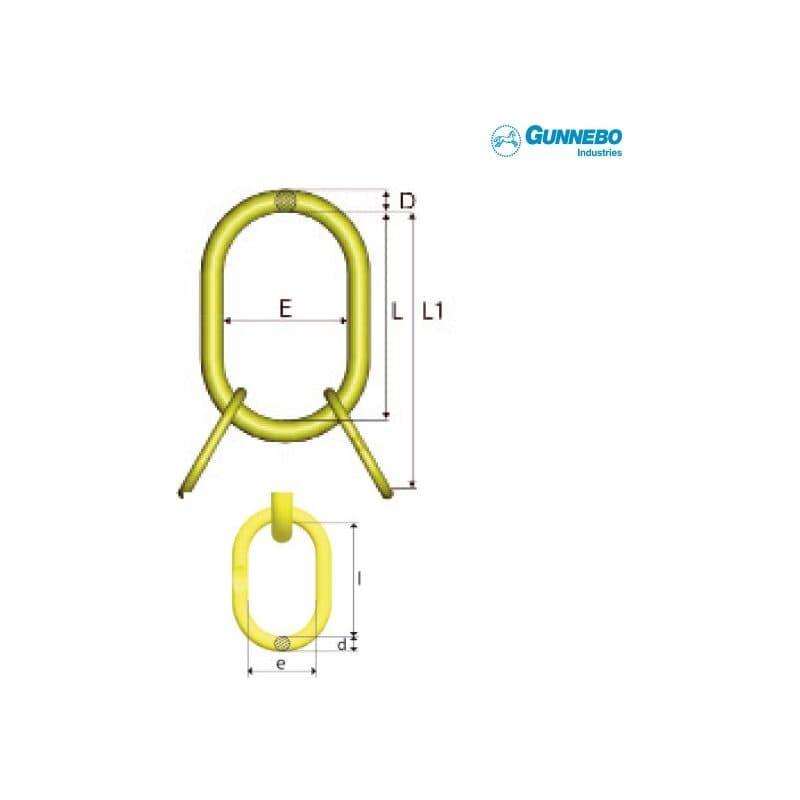

Master links with Sublinks MT — sizes and part numbers
Part no.	WLL 5:1(ton)	L1(mm)	L(mm)	E(mm)	D(mm)	I(mm)	e(mm)	d(mm)	Weight(kg)
Q-MT-06-10	3.5	270	150	90	19	120	70	14	1.8
Q-MT-08-10	5.2	300	160	95	22	140	80	17	3.0
Q-MT-09-10	6.9	340	190	110	28	150	90	19	4.9
Q-MT-10-10	11.5	360	200	120	30	160	95	22	6.4
Q-MT-13-10	17.0	450	250	150	40	200	120	30	14.2
Q-MT-16-10	28.0	500	300	200	50	200	120	32	23.0
Q-MT-20-10	35.0	550	300	200	55	250	150	40	31.5
Q-MT-22-10	53.0	610	350	200	60	260	140	45	46.0
Q-MT-26-10	70.0	730	450	250	70	280	160	50	71.0
Q-MT-32-10	90.0	750	450	260	80	280	160	55	91.0

Scroll the table sideways for all 10 columns.
