Master links MFH

Available on request

Designed for crane hooks, DIN 15401 MAX

Specifications

Working load limit	7.5–28 ton
Sizes tabulated	5

Missing a spec? It's available on request — send us your requirement.

5 sizes available. Quote by part number, or send us the load and we'll size it.

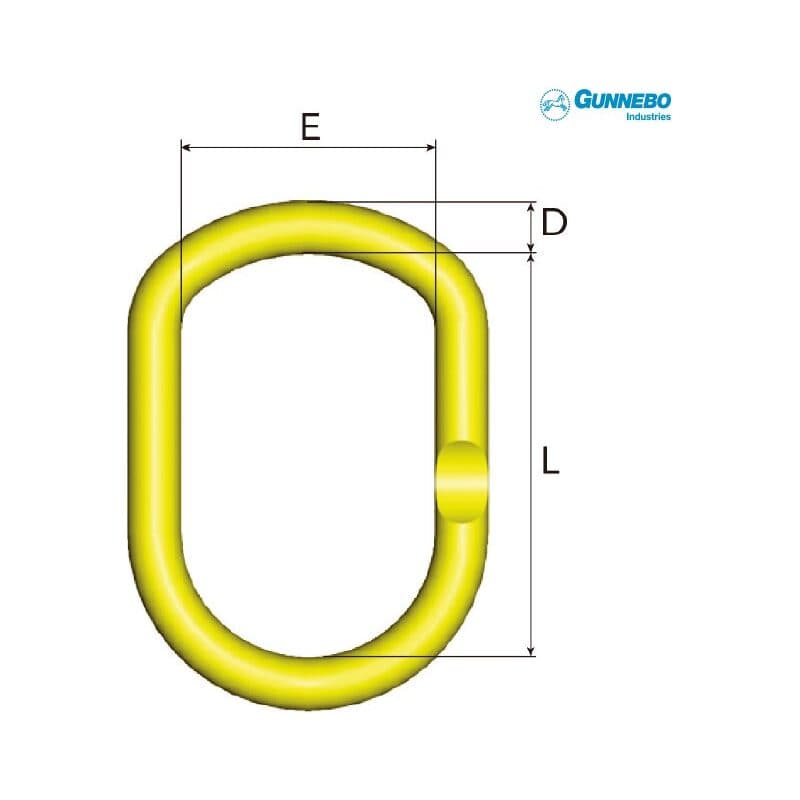

Master links MFH — sizes and part numbers
Part no.	WLL 5:1(ton)	For chain size 1-leg(mm)	For chain size 2-leg(mm)	For chain size 3-leg(mm)	L(mm)	E(mm)	D(mm)	DIN 15401	DIN 15402	Weight(kg)
Q-MFH-1310-10	7.5	13	10	8	230	125	22	≤ 12	≤ 16	1.9
Q-MFH-1613-10	10.0	16	13	10	250	135	28	≤ 12	≤ 16	3.2
Q-MFH-2016-10	17.0	20	16	13	280	135	32	≤ 16	≤ 20	4.6
Q-MFH-2220-10	28.0	22	20	16	320	175	40	≤ 25	≤ 32	8.6
Q-MFHW-2220-10	25.0	22	20	16	355	225	40	≤ 50	≤ 63	9.9

Scroll the table sideways for all 11 columns.
