Lifting chains — Grade 8, Short link

Available on request

Grade 8 lifting chains in 10 sizes, 1.12–31.5 ton WLL.

Specifications

Missing a spec? It's available on request — send us your requirement.

10 sizes available. Quote by part number, or send us the load and we'll size it.

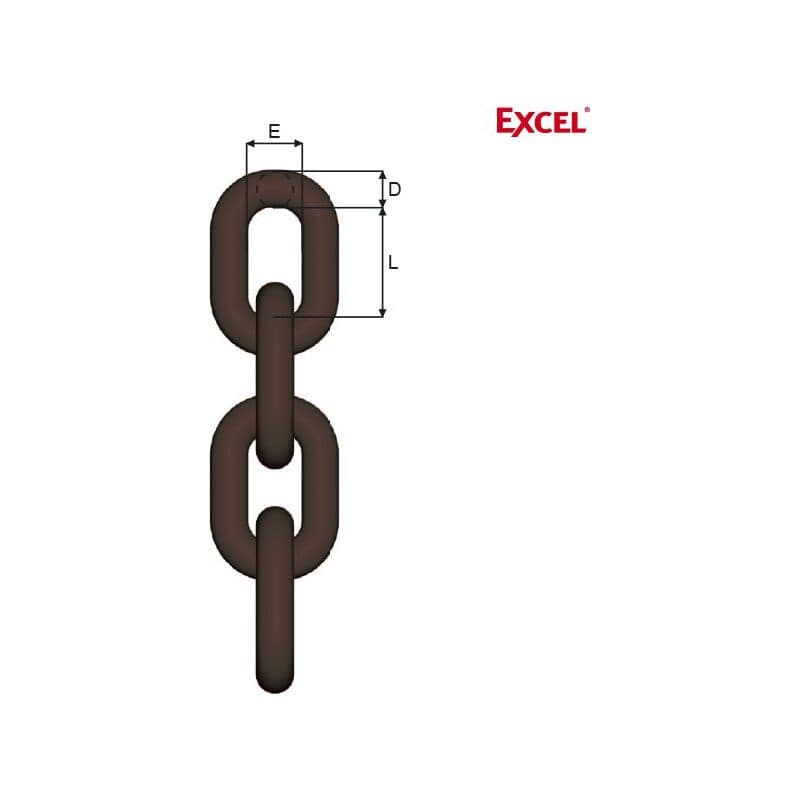

Lifting chains — Grade 8, Short link — sizes and part numbers
Part no.	WLL(ton)	D(mm)	L(mm)	E(mm)	Weight(kg/m)
KLC-06-8	1.12	6	18	10	0.78
KLC-07-8	1.50	7	21	12	1.14
KLC-08-8	2.00	8	24	14	1.50
KLC-10-8	3.15	10	30	16	2.27
KLC-13-8	5.30	13	39	21	3.74
KLC-16-8	8.00	16	48	26	5.54
KLC-20-8	12.50	20	60	32	8.94
KLC-22-8	15.00	22	66	35	11.57
KLC-26-8	21.20	26	78	41	15.26
KLC-32-8	31.50	32	96	48	22.61

Scroll the table sideways for all 6 columns.
