Master Link MT GrabiQ

Name: Master Link MT GrabiQ
Brand: GrabiQ

Available on request

Master Link MT GrabiQ in 9 sizes, 4.3–125 ton WLL.

Specifications

Working load limit	4.3–125 ton
Sizes tabulated	9

Missing a spec? It's available on request — send us your requirement.

9 sizes available. Quote by part number, or send us the load and we'll size it.

Master Link MT GrabiQ — sizes and part numbers

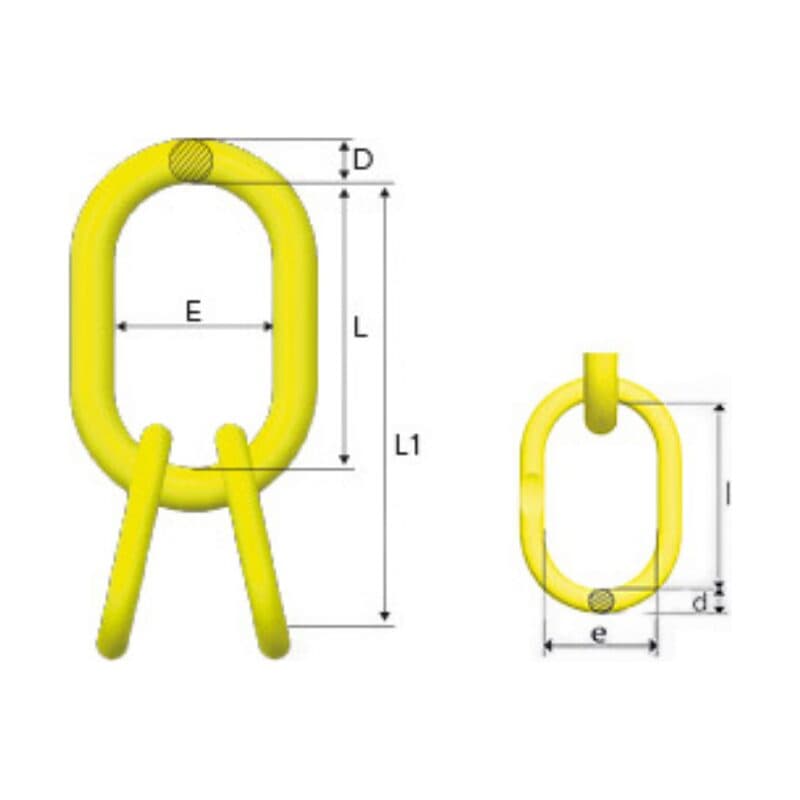

Part no.	WLL 5:1(ton)	L1(mm)	L(mm)	E(mm)	D(mm)	(I)(mm)	e(mm)	d(mm)	G*(mm)	Weight(kg)
Q-MT-06-10-V2	4.3	260	140	80	17	120	60	13	6	1.5
Q-MT-08-10-V2	7.8	300	160	95	22	140	80	17	8	3.0
Q-MT-10-10-V2	12.0	435	275	145	28	160	95	22	10	6.8
Q-MT-13-10-V2	21.0	465	275	145	32	190	110	28	13	10.9
Q-MT-16-10-V2	31.0	545	270	140	40	275	145	32	16	18.4
Q-MT-20-10-V2	48.0	610	340	180	45	270	140	40	20	29.1
Q-MT-22-10-V2	60.0	690	350	200	55	340	180	45	-	46.4
Q-MT-26-10-V2	85.0	725	375	210	60	350	200	55	-	67.6
Q-MT-32-10-V2	125.0	825	450	260	80	375	210	60	-	110.1

Scroll the table sideways for all 11 columns.
