GrabiQ

Master Link MF GrabiQ

Name: Master Link MF GrabiQ
Brand: GrabiQ

Available on request

Master Link MF GrabiQ in 7 sizes, 2–32 ton WLL.

Specifications

Working load limit	2–32 ton
Sizes tabulated	7

Missing a spec? It's available on request — send us your requirement.

7 sizes available. Quote by part number, or send us the load and we'll size it.

Master Link MF GrabiQ — sizes and part numbers

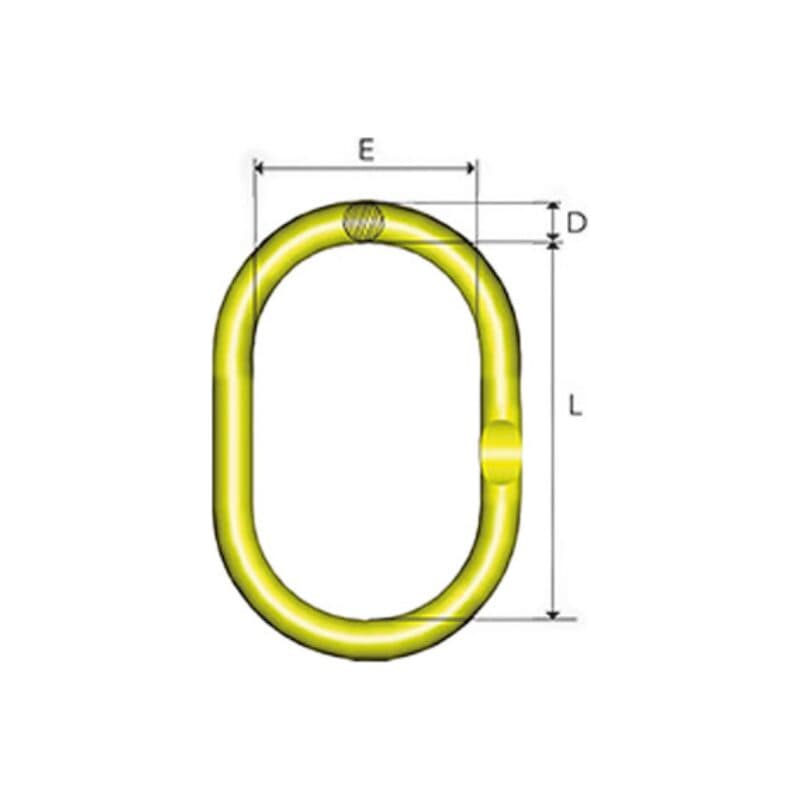

Part no.	WLL 5:1(ton)	L(mm)	E(mm)	D(mm)	G*(mm)	Weight(kg)
Q-MF-6-10-V2	2.0	100	60	11	6	0.2
Q-MF-86-10-V2	3.2	120	60	13	6	0.4
Q-MF-108-10-V2	5.4	140	80	17	8	0.8
Q-MF-1310-10-V2	8.2	160	95	22	10	1.5
Q-MF-1613-10-V2	13.6	275	145	28	13	3.9
Q-MF-2016-10-V2	20.6	275	145	32	16	5.1
Q-MF-2220-10-V2	32.0	270	140	40	20	8.1

Scroll the table sideways for all 7 columns.

Send specs, photos, drawings, or inspection and testing requests. Your reply comes from the branch that will do the work.
