GrabiQ

Master Link M GrabiQ

Name: Master Link M GrabiQ
Brand: GrabiQ

Available on request

Master Link M GrabiQ in 5 sizes, 41–125 ton WLL.

Specifications

Working load limit	41–125 ton
Sizes tabulated	5

Missing a spec? It's available on request — send us your requirement.

5 sizes available. Quote by part number, or send us the load and we'll size it.

Master Link M GrabiQ — sizes and part numbers

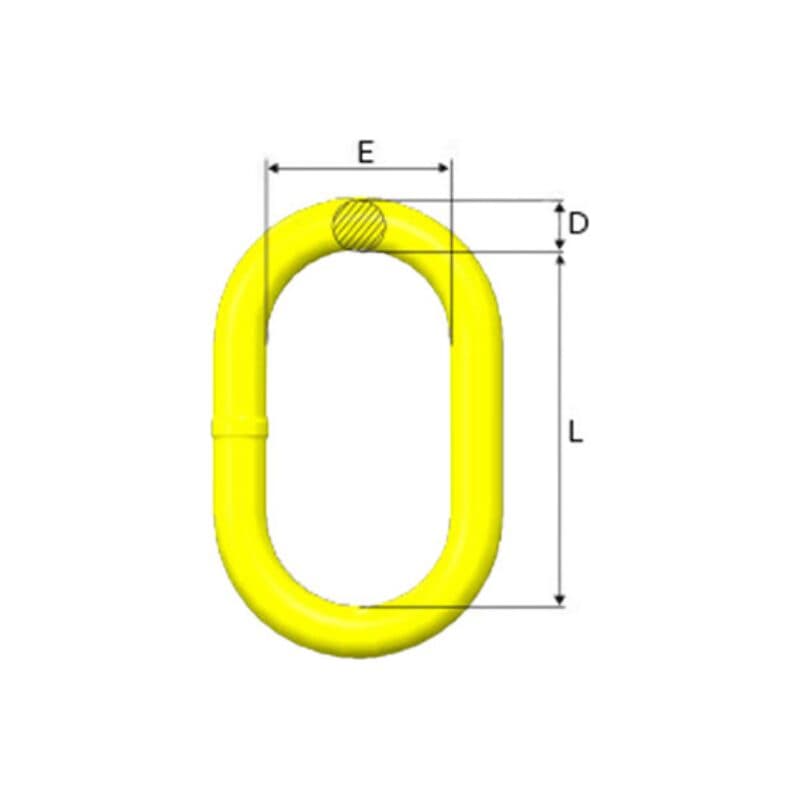

Part no.	WLL 5:1(ton)	L(mm)	E(mm)	D(mm)	Weight(kg)
M-2622-10-V2	41.0	340	180	45	12.9
M-3226-10-V2	57.0	350	200	55	20.7
M-3632-10-V2	72.0	375	210	60	26.3
M-100T-10-V2	100.0	450	250	70	42.7
M-125T-10-V2	125.0	450	260	80	57.5

Scroll the table sideways for all 6 columns.
