Request a Quote

Rubber discs

Available on request

Rubber discs in 48 sizes.

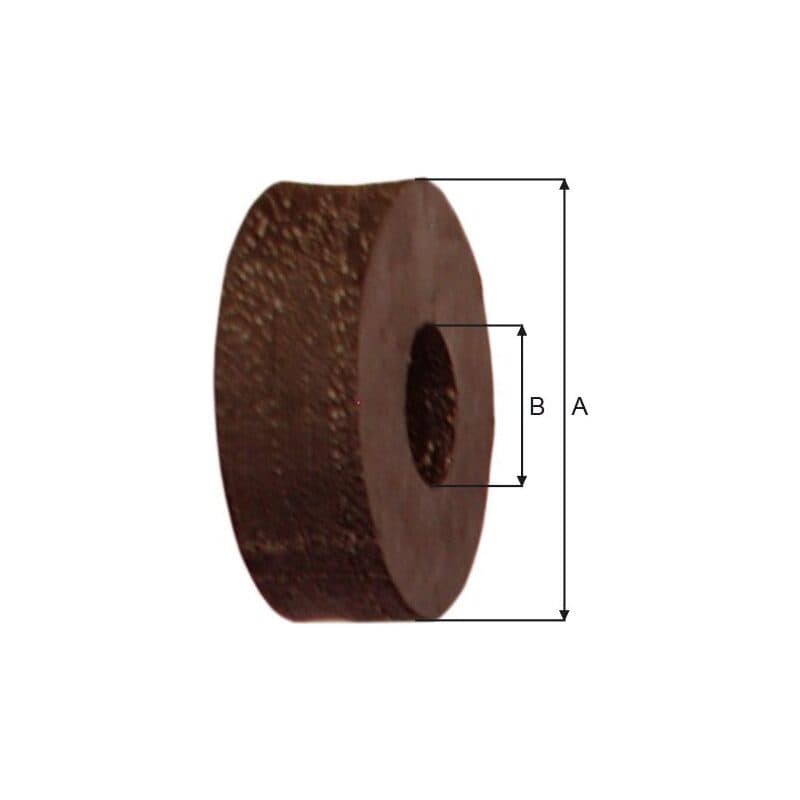

Rubber discs — manufacturer dimension drawing

Specifications

Sizes tabulated	48

Missing a spec? It's available on request — send us your requirement.

Sizes & part numbers

48 sizes available. Quote by part number, or send us the load and we'll size it.

Rubber discs — sizes and part numbers
Part no.	A(mm)	B(mm)
RG035/12	35	12
RG040/12	40	12
RG040/14	40	14
RG045/12	45	12
RG045/14	45	14
RG045/16	45	16
RG045/18	45	18
RG045/20	45	20
RG045/22	45	22
RG050/12	50	12
RG050/14	50	14
RG050/16	50	16
RG050/18	50	18
RG050/20	50	20
RG050/22	50	22
RG060/18	60	18
RG060/20	60	20
RG060/22	60	22
RG060/25	60	25
RG070/20	70	20
RG070/30	70	30
RG075/14	75	14
RG075/20	75	20
RG075/22	75	22
RG075/25	75	25
RG075/30	75	30
RG080/40	80	40
RG080/50	80	50
RG100/20	100	20
RG100/30	100	30
RG100/50	100	50
RG120/50	120	50
RG120/60	120	60
RG125/19	125	19
RG125/22	125	22
RG125/25	125	25
RG130/30	130	30
RG150/50	150	50
RG150/75	150	75
RG160/70	160	70
RG175/18	175	18
RG175/22	175	22
RG175/75	175	75
RG200/19	200	19
RG200/22	200	22
RG200/40	200	40
RG200/75	200	75
RG200/80	200	80

Scroll the table sideways for all 3 columns.
