Trawlex

Self-locking hooks

Name: Self-locking hooks
Brand: Trawlex

Available on request

Self-locking hooks in 6 sizes.

Specifications

Sizes tabulated	6

Missing a spec? It's available on request — send us your requirement.

6 sizes available. Quote by part number, or send us the load and we'll size it.

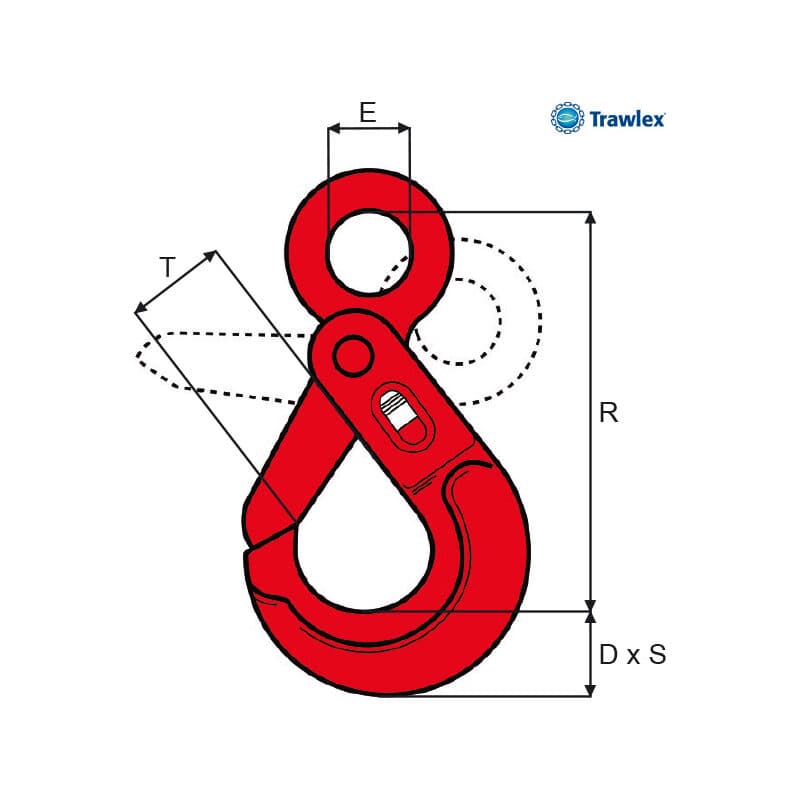

Self-locking hooks — sizes and part numbers
Part no.	Chain(mm)	R(mm)	D(mm)	S(mm)	T(mm)	E(mm)	kg
KHX07E	7	142	25	19	36	23	0.85
KHX10E	10	175	32	24	47	30	1.15
KHX13E	13	217	42	30	56	40	3.06
KHX16E	16	272	49	36	70	51	5.24
KHX19E	19	277	66	53	80	65	9.50
KHX23E	23	315	69	63	92	75	13.90

Scroll the table sideways for all 8 columns.

Send specs, photos, drawings, or inspection and testing requests. Your reply comes from the branch that will do the work.
