Sheaves (SKTV320-2–SKTV380-2)

Available on request

Sheaves in 2 sizes.

Specifications

Sizes tabulated	2

Missing a spec? It's available on request — send us your requirement.

2 sizes available. Quote by part number, or send us the load and we'll size it.

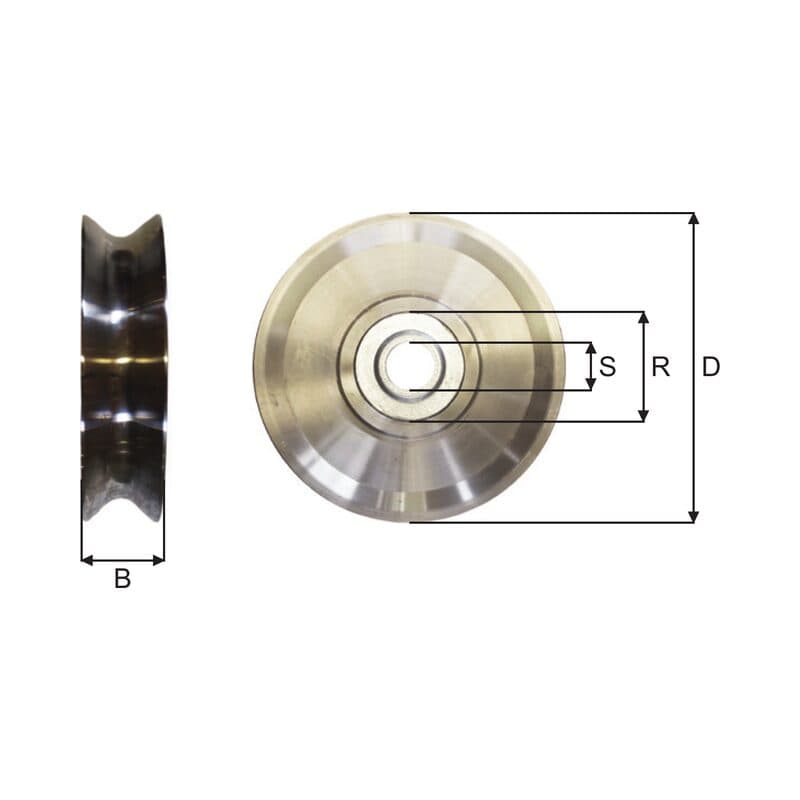

Sheaves (SKTV320-2–SKTV380-2) — sizes and part numbers
Part no.	B(mm)	D(mm)	R(mm)	S(mm)	Weight(kg)
SKTV320-2	50	320	80	35	12
SKTV380-2	50	380	80	35	15

Scroll the table sideways for all 6 columns.

Send specs, photos, drawings, or inspection and testing requests. Your reply comes from the branch that will do the work.
