Sheaves (SKT230-2–SKT500-2)

Available on request

Sheaves in 4 sizes.

Specifications

Sizes tabulated	4

Missing a spec? It's available on request — send us your requirement.

4 sizes available. Quote by part number, or send us the load and we'll size it.

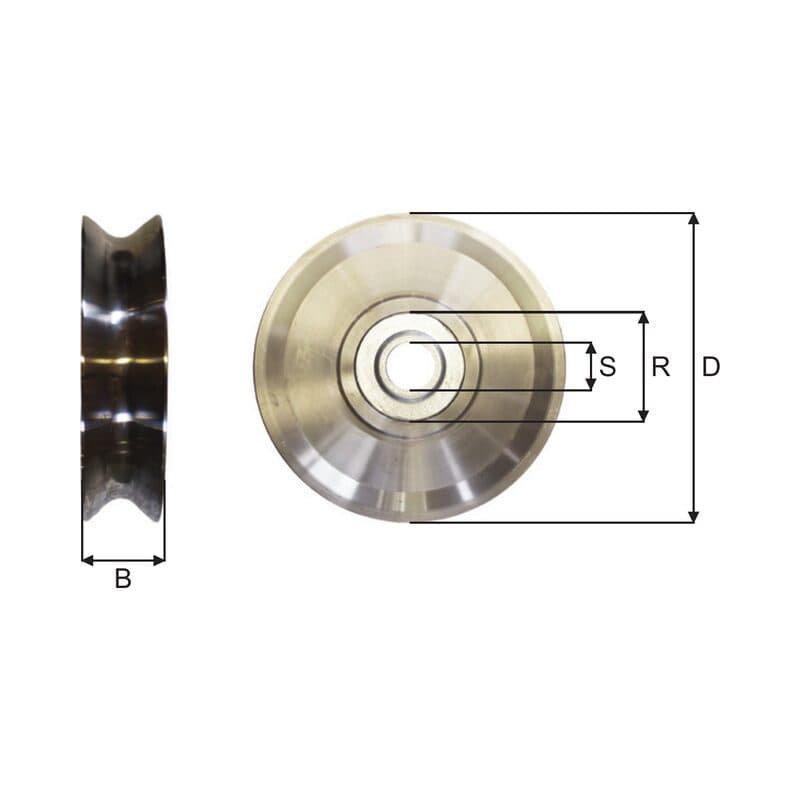

Sheaves (SKT230-2–SKT500-2) — sizes and part numbers
Part no.	B(mm)	D(mm)	R(mm)	S(mm)	Weight(kg)	G(mm)	Max wire(mm)
SKT230-2	57	230	80	35	12.80	195	28
SKT300-2	66	300	100	45	18.20	260	28
SKT400-2	70	400	120	60	35.00	345	28
SKT500-2	76	515	140	65	42.50	—	—

Scroll the table sideways for all 8 columns.
