Sheaves — Roller bearing (SKS230-2–SKS500-2)

Available on request

Sheaves in 4 sizes.

Specifications

Configuration	Roller bearing
Sizes tabulated	4

Missing a spec? It's available on request — send us your requirement.

4 sizes available. Quote by part number, or send us the load and we'll size it.

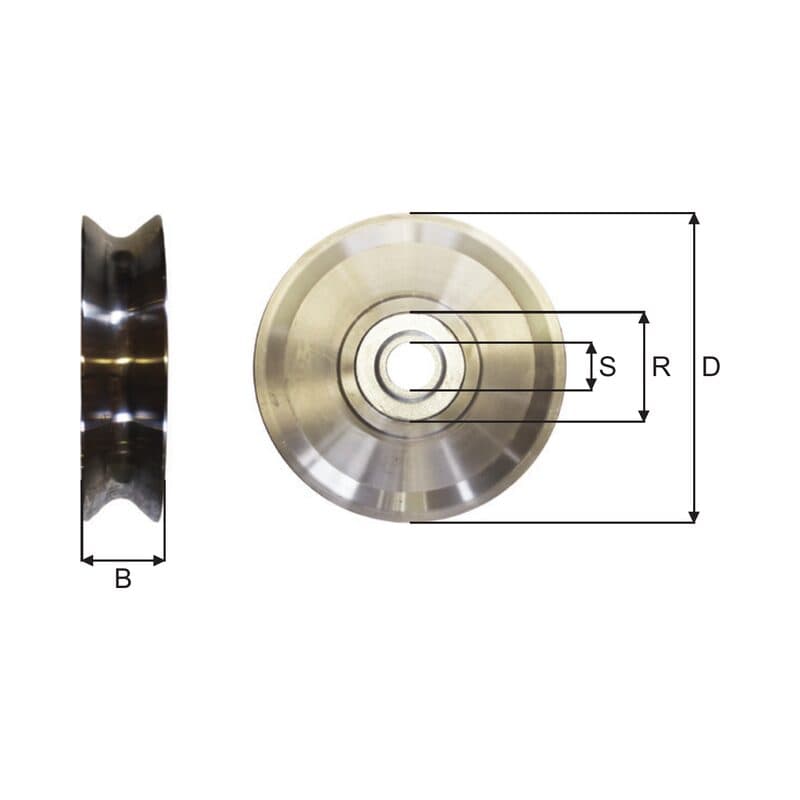

Sheaves — Roller bearing (SKS230-2–SKS500-2) — sizes and part numbers
Part no.	B(mm)	D(mm)	R(mm)	S(mm)	Weight(kg)
SKS230-2	57	230	80	35	12.80
SKS300-2	66	300	100	45	18.20
SKS400-2	70	400	128	60	35.00
SKS500-2	70	515	140	65	42.50

Scroll the table sideways for all 6 columns.

Send specs, photos, drawings, or inspection and testing requests. Your reply comes from the branch that will do the work.
