Sheaves — Ball bearing (SKS2-2–SKS6-1)

Available on request

Sheaves in 4 sizes.

Specifications

Configuration	Ball bearing
Sizes tabulated	4

Missing a spec? It's available on request — send us your requirement.

4 sizes available. Quote by part number, or send us the load and we'll size it.

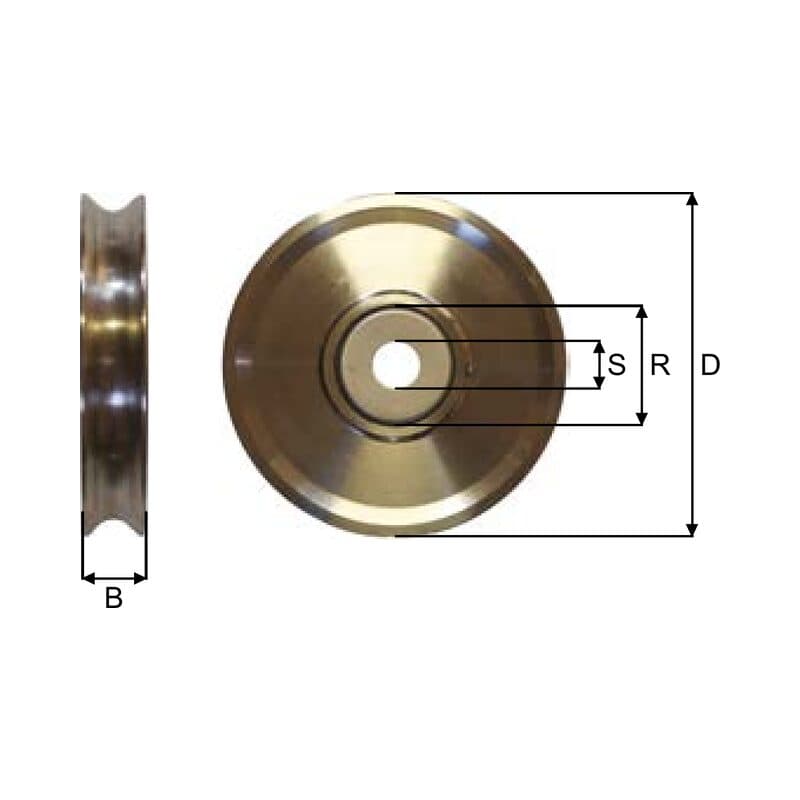

Sheaves — Ball bearing (SKS2-2–SKS6-1) — sizes and part numbers
Part no.	B(mm)	D(mm)	R(mm)	S(mm)	Weight(kg)
SKS2-2	24	110	52	25	1.25
SKS3-2	28	150	47	25	2.65
SKS4-1	35	185	62	30	5.10
SKS6-1	42	210	76	30	7.70

Scroll the table sideways for all 6 columns.

Send specs, photos, drawings, or inspection and testing requests. Your reply comes from the branch that will do the work.
