Netsounder blocks (KT300NET-1NY–KT500NET-1ST)

Available on request

Netsounder blocks in 6 sizes, 4 ton WLL.

Specifications

Working load limit	4 ton
Sizes tabulated	6

Missing a spec? It's available on request — send us your requirement.

6 sizes available. Quote by part number, or send us the load and we'll size it.

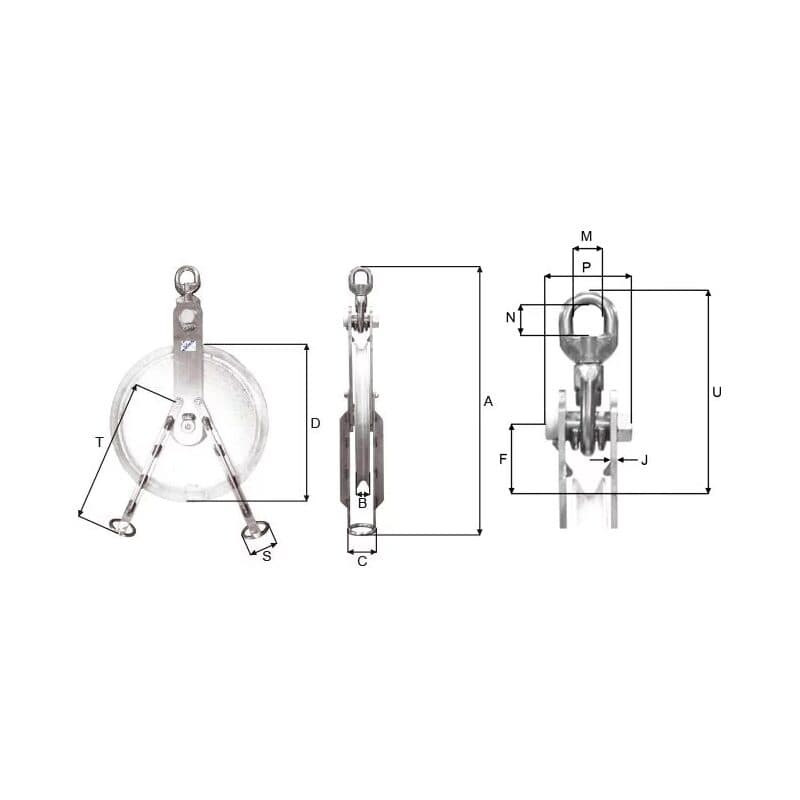

Netsounder blocks (KT300NET-1NY–KT500NET-1ST) — sizes and part numbers
Part no.	WLL 5:1	A(mm)	B(mm)	C(mm)	D(mm)	F(mm)	J(mm)	M(mm)	N(mm)	O(mm)	P(mm)	S(mm)	T(mm)	U(mm)	Weight(kg)
KT300NET-1NY	4.0	810	44	99	300	45	10	40	65	22	125	75	470	250	15.4
KT300NET-1SS	4.0	810	44	99	300	45	10	40	65	22	125	75	470	250	20.4
KT300NET-1ST	4.0	810	44	99	300	45	10	40	65	22	125	75	470	250	20.4
KT500NET-1NY	4.0	905	44	99	500	45	10	40	65	22	125	75	470	225	26.6
KT500NET-1SS	4.0	905	44	99	500	45	10	40	65	22	125	75	470	225	32.6
KT500NET-1ST	4.0	905	44	99	500	45	10	40	65	22	125	75	470	225	32.6

Scroll the table sideways for all 16 columns.
