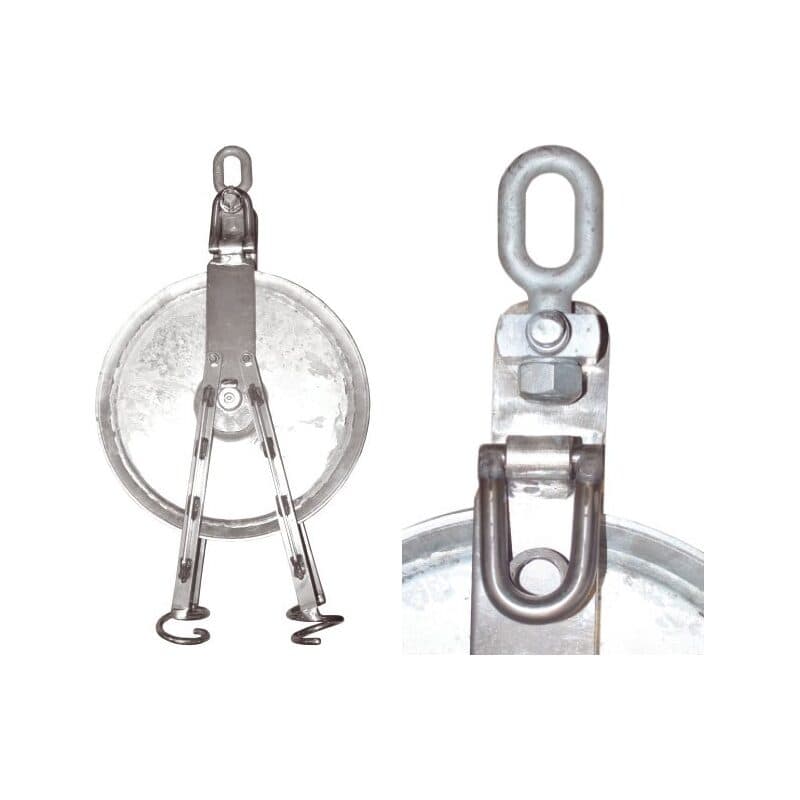

Netsounder blocks (KS500NET-1ECG/NY–KS500NET-1ECG/ST)

Available on request

Netsounder blocks in 3 sizes, 4 ton WLL.

Specifications

Working load limit	4 ton
Sizes tabulated	3

Missing a spec? It's available on request — send us your requirement.

3 sizes available. Quote by part number, or send us the load and we'll size it.

Netsounder blocks (KS500NET-1ECG/NY–KS500NET-1ECG/ST) — sizes and part numbers
Part no.	WLL 5:1	A(mm)	B(mm)	C(mm)	D(mm)	F(mm)	J(mm)	M(mm)	N(mm)	O(mm)	P(mm)	S(mm)	T(mm)	U(mm)	Weight(kg)
KS500NET-1ECG/NY	4.0	885	44	99	500	45	10	40	42	22	125	75	470	225	28.0
KS500NET-1ECG/SS	4.0	885	44	99	500	45	10	40	42	22	125	75	470	225	35.0
KS500NET-1ECG/ST	4.0	885	44	99	500	45	10	40	42	22	125	75	470	225	35.0

Scroll the table sideways for all 16 columns.
