Split links — Stainless steel (BOSS DL18S–BOSS DL22S)

Name: Split links — Stainless steel (BOSS DL18S–BOSS DL22S)
Brand: Boss

Available on request

Stainless steel split links in 5 sizes, 0.2–1.4 ton WLL.

Specifications

Missing a spec? It's available on request — send us your requirement.

5 sizes available. Quote by part number, or send us the load and we'll size it.

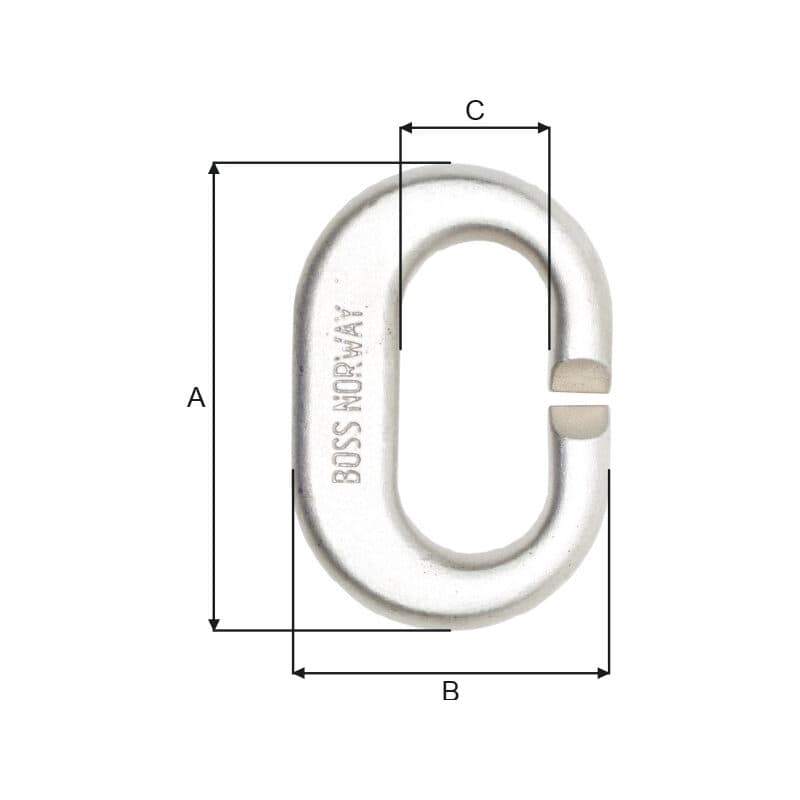

Split links — Stainless steel (BOSS DL18S–BOSS DL22S) — sizes and part numbers
Part no.	WLL 5:1(ton)	A(mm)	B(mm)	C(mm)	Weight(kg)
BOSS DL18S	0.2	78	45	18	0.17
BOSS DL19S	0.4	79	50	24	0.27
BOSS DL20S	0.5	82	55	24	0.30
BOSS DL21S	1.4	108	63	25	0.70
BOSS DL22S	1.3	106	68	33	0.60

Scroll the table sideways for all 6 columns.
