Boss

Links — Stainless steel

Name: Links — Stainless steel
Brand: Boss

Available on request

Stainless steel links in 3 sizes, 2.4–12 ton WLL.

Specifications

Missing a spec? It's available on request — send us your requirement.

3 sizes available. Quote by part number, or send us the load and we'll size it.

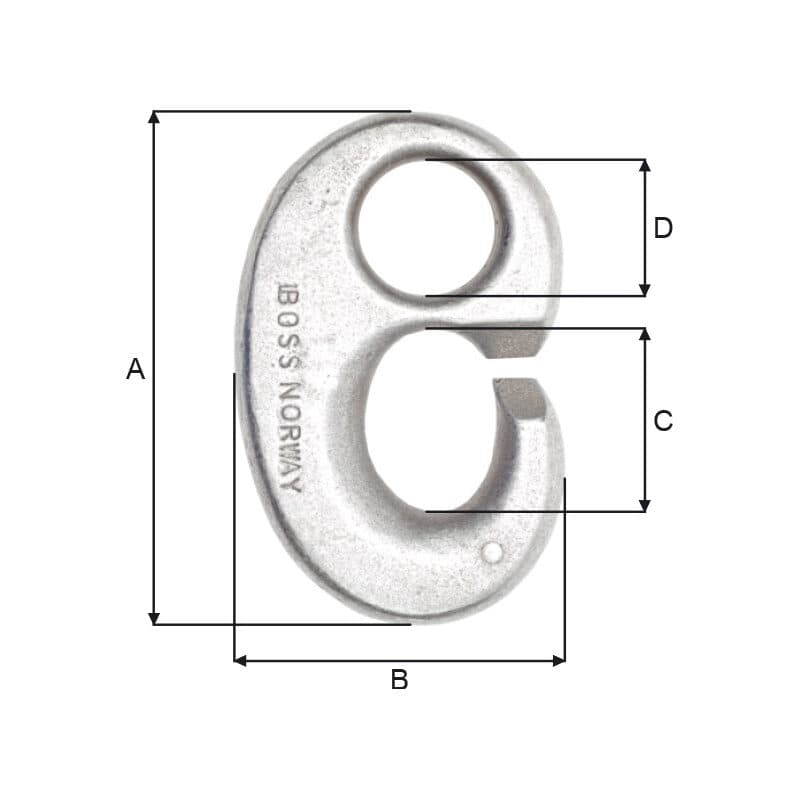

Links — Stainless steel — sizes and part numbers
Part no.	WLL 5:1(ton)	A(mm)	B(mm)	C(mm)	D(mm)	Weight(kg)
BOSS DL26S	2.4	150	95	38	28	1.65
BOSS DL27S	5.0	212	132	58	31	3.60
BOSS DL28S	12.0	260	170	60	49	9.60

Scroll the table sideways for all 7 columns.

Send specs, photos, drawings, or inspection and testing requests. Your reply comes from the branch that will do the work.
