Tackle blocks — Galvanized (KT230-2–KT600-2)

Available on request

Galvanized tackle blocks in 5 sizes, 7–30 ton WLL.

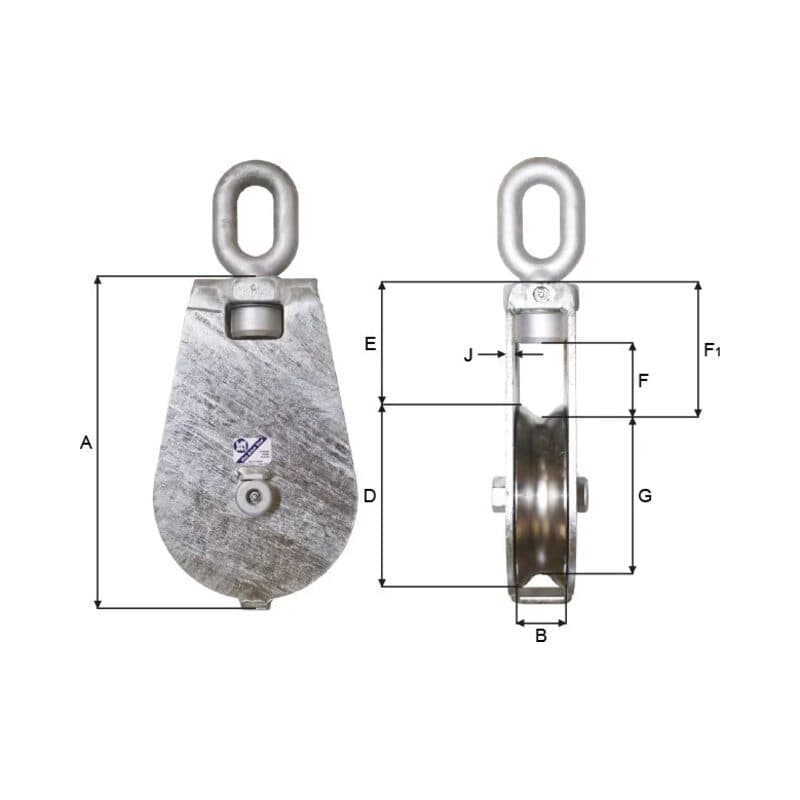

Tackle blocks — Galvanized (KT230-2–KT600-2) — manufacturer dimension drawing

Specifications

Material / finishGalvanized
Working load limit7–30 ton
Sizes tabulated5

Missing a spec? It's available on request — send us your requirement.

Sizes & part numbers

5 sizes available. Quote by part number, or send us the load and we'll size it.

Tackle blocks — Galvanized (KT230-2–KT600-2) — sizes and part numbers
Part no.WLL 5:1(ton)Max load on headfitting(ton)Test load(ton)A(mm)B(mm)D(mm)E(mm)F(mm)F1(mm)G(mm)J(mm)Max wire(mm)Weight(kg)
KT230-27.014.028.04055723015011016819582829.0
KT300-210.020.040.048066300155100175260102855.0
KT400-215.030.060.0645744002151502403451228108.0
KT500-220.040.080.0770825152501602854451530154.0
KT600-230.060.095.01065826003151793495322036280.0

Scroll the table sideways for all 14 columns.

  • 2: Roller bearing
  • For synthetic rope all blocks can be supplied with stainless sheave.
  • BMM-Blocks must be ordered with one of the following:
  • E Swivel eye.
  • F Swivel fork.
  • S Swivel shackle eye.
  • On order add letter, e.g. KT230-2E
  • Against extra charge all blocks are available with:
  • B Becket.
  • H Flame hardened sheave.
  • On order add letter, e.g. KT230-2EG
