BMM

Stoppers (E90-407S)

Name: Stoppers (E90-407S)
Brand: BMM

Available on request

Stoppers, 12 ton WLL.

Specifications

Working load limit	12 ton
Sizes tabulated	1

Missing a spec? It's available on request — send us your requirement.

1 sizes available. Quote by part number, or send us the load and we'll size it.

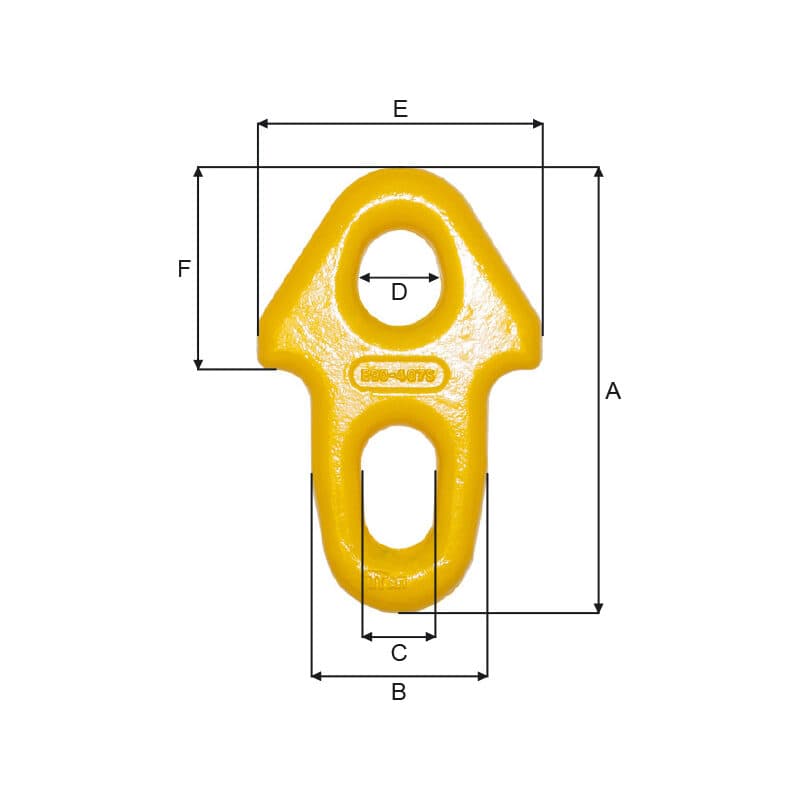

Stoppers (E90-407S) — sizes and part numbers
Part no.	WLL 5:1(ton)	Thickness(mm)	A(mm)	B(mm)	C(mm)	D(mm)	E(mm)	F(mm)	Weight(kg)
E90-407S	12.0	32	220	88	36	40	140	100	3.3

Scroll the table sideways for all 10 columns.
