BMM

Snatch blocks — Stainless steel

Name: Snatch blocks — Stainless steel
Brand: BMM

Available on request

Stainless steel snatch blocks in 2 sizes, 1–2 ton WLL.

Specifications

Missing a spec? It's available on request — send us your requirement.

2 sizes available. Quote by part number, or send us the load and we'll size it.

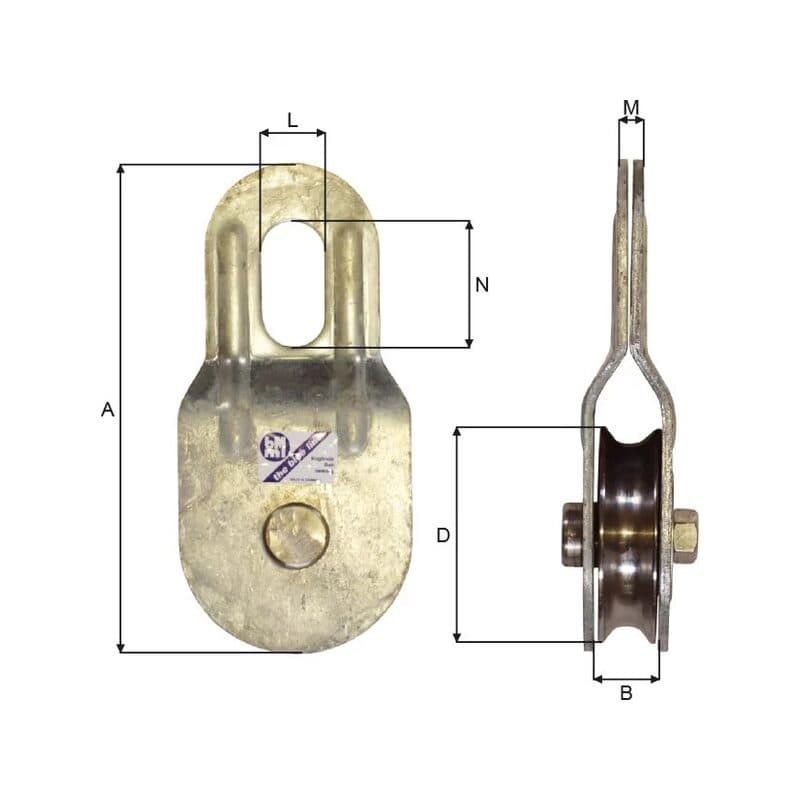

Snatch blocks — Stainless steel — sizes and part numbers
Part no.	WLL 5:1	A(mm)	B(mm)	D(mm)	M(mm)	L(mm)	N(mm)	Max wire(mm)	Weight(kg)
KSW1-1SS	1.0	190	22	80	24	13	48	16	1.6
KSW2-1SS	2.0	255	24	110	28	15	56	20	2.9

Scroll the table sideways for all 10 columns.
