Snatch blocks — Galvanized (KSW1-NG–KSW3-0G)

Name: Snatch blocks — Galvanized (KSW1-NG–KSW3-0G)
Brand: BMM

Available on request

Galvanized snatch blocks in 12 sizes, 1–3 ton WLL.

Specifications

Missing a spec? It's available on request — send us your requirement.

12 sizes available. Quote by part number, or send us the load and we'll size it.

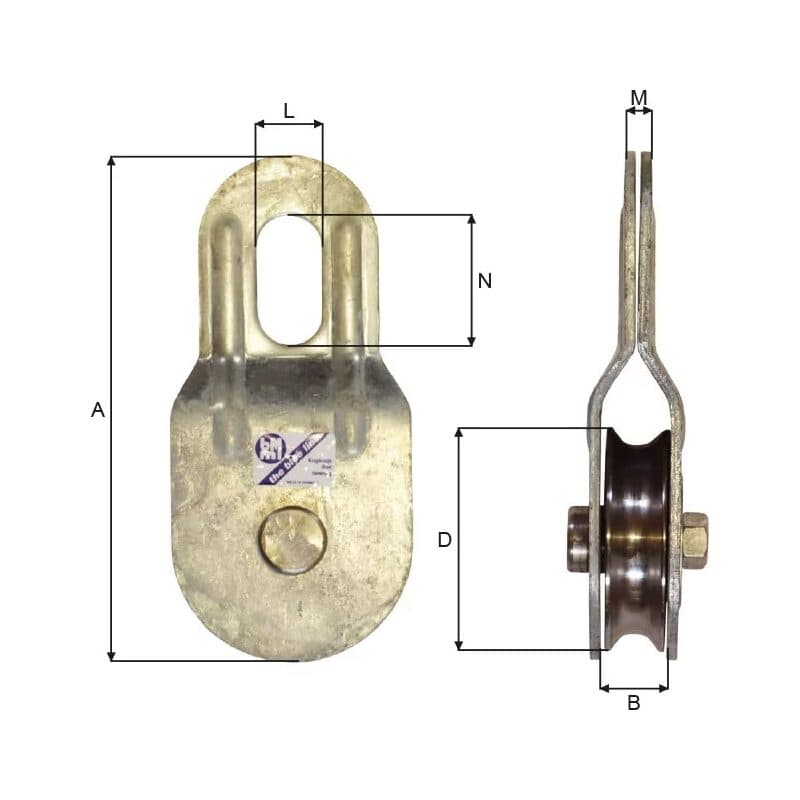

Snatch blocks — Galvanized (KSW1-NG–KSW3-0G) — sizes and part numbers
Part no.	WLL 5:1	A(mm)	B(mm)	D(mm)	M(mm)	L(mm)	N(mm)	Max wire(mm)	Weight(kg)
KSW1-NG	1.0	190	22	80	13	23	48	16	1.0
KSW1-NG-30	1.0	190	30	80	13	23	48	24	1.2
KSW1-1G	1.0	190	22	80	13	23	48	16	1.5
KSW1-1G-30	1.0	190	30	80	13	23	48	24	1.8
KSW1-0G	1.0	190	22	80	13	23	48	16	1.5
KSW1-0G-30	1.0	190	30	80	13	23	48	24	1.8
KSW2-NG	2.0	255	24	110	15	28	56	18	1.9
KSW2-1G	2.0	255	24	110	15	28	56	18	2.9
KSW2-0G	2.0	255	24	110	15	28	56	18	3.0
KSW3-NG	3.0	350	28	150	16	40	60	20	4.0
KSW3-1G	3.0	350	28	150	16	40	60	20	6.3
KSW3-0G	3.0	350	28	150	16	40	60	20	6.4

Scroll the table sideways for all 10 columns.
