Snatch blocks — Galvanized, Bronze bushing (KS40–KS60)

Name: Snatch blocks — Galvanized, Bronze bushing (KS40–KS60)
Brand: BMM

Available on request

Galvanized snatch blocks in 3 sizes, 3.5–6 ton WLL.

Specifications

Missing a spec? It's available on request — send us your requirement.

3 sizes available. Quote by part number, or send us the load and we'll size it.

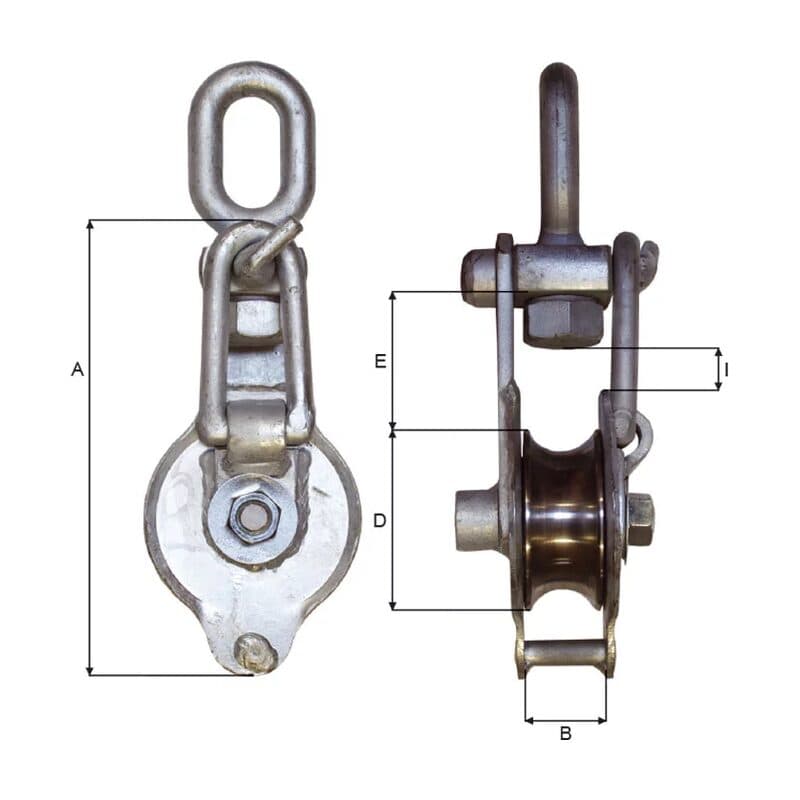

Snatch blocks — Galvanized, Bronze bushing (KS40–KS60) — sizes and part numbers
Part no.	WLL 5:1(ton)	Max load on headfitting(ton)	Test load(ton)	A(mm)	B(mm)	D(mm)	E / EG(mm)	E / RG(mm)	I / EG(mm)	I / RG(mm)	Weight(kg)
KS40	3.5	7.0	14.0	250	45	100	45	75	38	50	7.5
KS50	4.6	9.2	18.4	325	60	150	90	90	38	65	15.2
KS60	6.0	12.0	24.0	375	60	215	80	70	38	60	24.0

Scroll the table sideways for all 12 columns.

Send specs, photos, drawings, or inspection and testing requests. Your reply comes from the branch that will do the work.
