BMM

Sling hooks — With latch

Name: Sling hooks — With latch
Brand: BMM

Available on request

Sling hooks in 4 sizes, 2–8.1 ton WLL.

Specifications

Missing a spec? It's available on request — send us your requirement.

4 sizes available. Quote by part number, or send us the load and we'll size it.

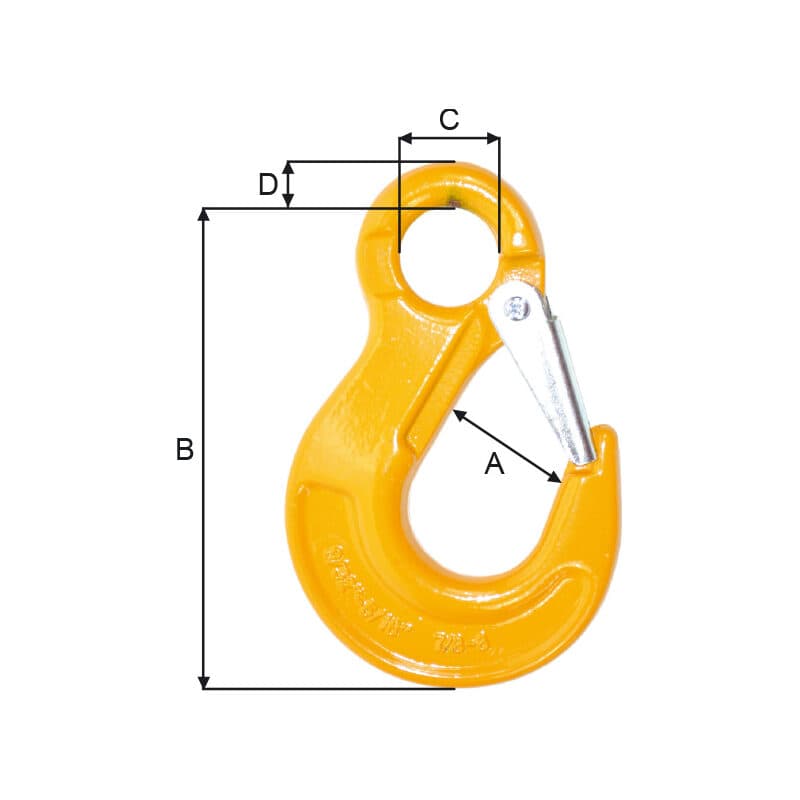

Sling hooks — With latch — sizes and part numbers
Part no.	WLL 4:1(ton)	A(mm)	B(mm)	C(mm)	D(mm)	Weight(kg)
ESH07C	2.0	24	94	24	12	0.55
ESH10C	3.2	29	126	32	16	1.10
ESH13C	5.1	37	152	40	17	1.95
ESH16C	8.1	48	203	50	23	4.5

Scroll the table sideways for all 7 columns.
