Sheaves (SKT1-1–SKT3-1)

Name: Sheaves (SKT1-1–SKT3-1)
Brand: BMM

Available on request

Sheaves in 24 sizes.

Specifications

Sizes tabulated	24

Missing a spec? It's available on request — send us your requirement.

24 sizes available. Quote by part number, or send us the load and we'll size it.

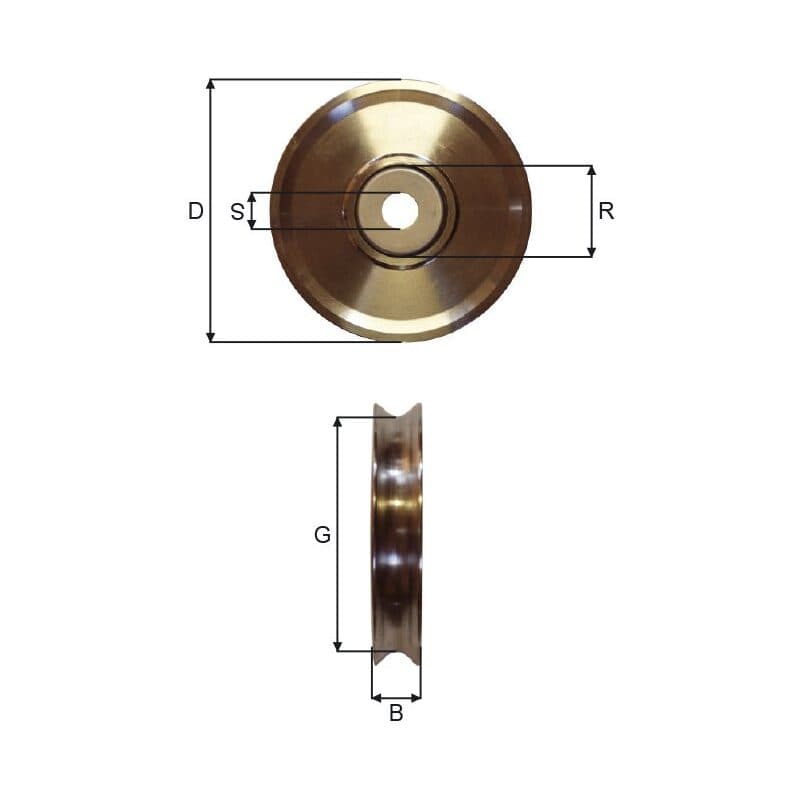

Sheaves (SKT1-1–SKT3-1) — sizes and part numbers
Part no.	D(mm)	B(mm)	G(mm)	R(mm)	S(mm)	Weight(kg)	Max wire(mm)
SKT1-1	83	22	70	47	17	0.60	16
SKT1-0-30	83	30	65	32	20	0.85	24
SKT1-0	83	22	70	27	20	0.75	16
SKT1-1SS	80	22	70	47	17	0.60	16
SKT1N	83	22	70	-	20	0.15	16
SKT2-2	110	24	96	52	25	1.25	18
SKT2-0-30	110	30	91	36	25	1.50	24
SKT2-0	110	24	96	36	25	1.30	18
SKT2-1SS	110	24	96	52	20	1.25	18
SKT2N	110	24	96	-	25	0.25	18
SKT3-2	150	28	133	47	25	2.65	20
SKT3-0	150	28	133	36	25	2.60	20
SKT3N	150	28	133	-	25	0.55	20
SKT4-1	185	35	160	62	30	5.10	22
SKT4-1-42	185	42	160	62	30	5.60	22
SKT4-0	185	35	160	41	30	5.20	22
SKT4N-1	185	35	160	62	30	1.13	22
SKT6-1	210	42	188	76	30	7.70	24
SKT6-0	210	42	188	41	30	7.60	24
SKT230-1	230	57	195	80	35	12.80	28
SKT300-1	300	66	260	100	45	18.20	28
SKTV500-2	515	76	445	140	65	42.50	30
SKT2-1	110	24	96	52	20	1.25	18
SKT3-1	150	28	133	47	20	2.65	20

Scroll the table sideways for all 8 columns.
