BMM

Sheaves (SKS10-0–SKT215-0)

Name: Sheaves (SKS10-0–SKT215-0)
Brand: BMM

Available on request

Sheaves in 13 sizes.

Specifications

Sizes tabulated	13

Missing a spec? It's available on request — send us your requirement.

13 sizes available. Quote by part number, or send us the load and we'll size it.

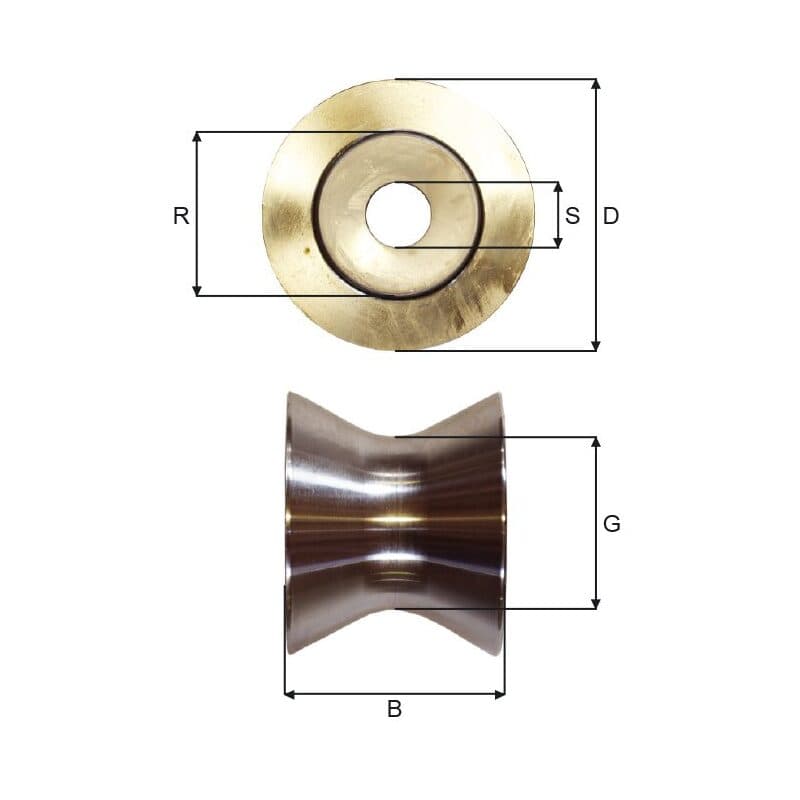

Sheaves (SKS10-0–SKT215-0) — sizes and part numbers
Part no.	D(mm)	B(mm)	G(mm)	R(mm)	S(mm)	Weight(kg)
SKS10-0	83	45	58	27	20	1.50
SKS20-0	83	45	58	27	20	1.50
SKS30-0	110	45	82	27	20	2.30
SKS40-0	110	45	82	27	20	2.30
SKS50-0	150	60	114	36	25	5.70
SKS60-0	215	60	178	41	35	11.30
SE16-0	83	70	54	36	25	1.60
SKA50-0	80	52	61	27	20	1.50
SKA100-0	80	100	57	27	20	2.30
SKA150-0	100	150	81	36	25	7.20
SKT110-0	110	85	72	36	25	3.80
SKT150-0	150	85	112	36	25	8.20
SKT215-0	215	100	170	56	35	18.50

Scroll the table sideways for all 7 columns.

Send specs, photos, drawings, or inspection and testing requests. Your reply comes from the branch that will do the work.
