BMM

Sheaves (SK130-1–SK1200-2)

Name: Sheaves (SK130-1–SK1200-2)
Brand: BMM

Available on request

Sheaves in 21 sizes.

Specifications

Sizes tabulated	21

Missing a spec? It's available on request — send us your requirement.

21 sizes available. Quote by part number, or send us the load and we'll size it.

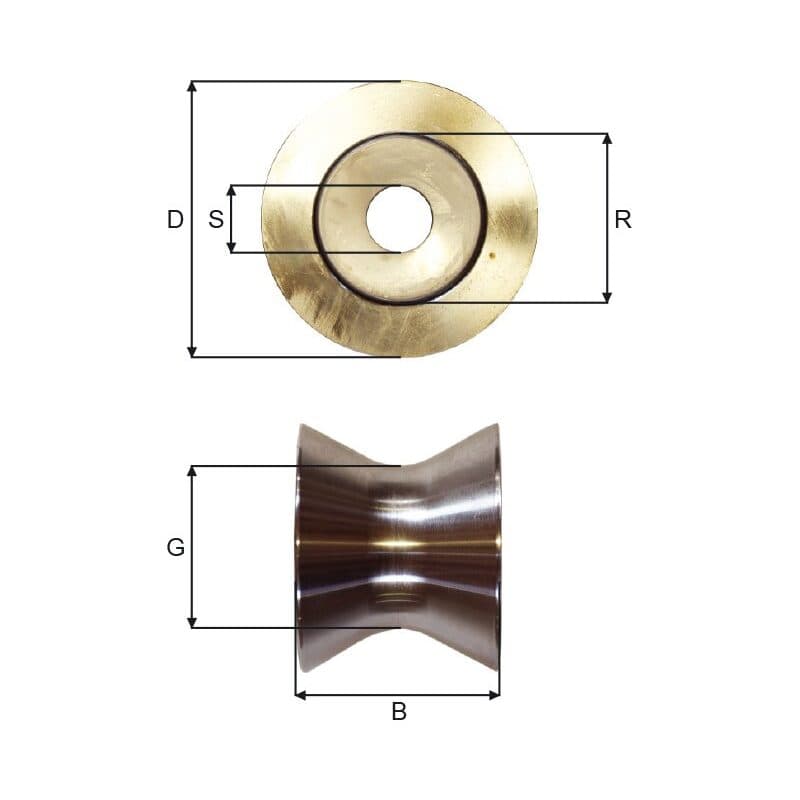

Sheaves (SK130-1–SK1200-2) — sizes and part numbers
Part no.	D(mm)	B(mm)	G(mm)	R(mm)	S(mm)	Weight(kg)
SK130-1	130	100	85	62	25	5.50
SK130-0	130	100	85	36	25	5.70
SK170-1	170	100	125	62	25	11.70
SK170-0	170	100	125	36	25	12.00
SK215-1	215	100	164	80	35	18.30
SK215-0	215	100	164	56	35	18.50
SK230-1	230	120	170	80	35	19.50
SK230-0	230	120	170	56	38	20.10
SK240-1	240	150	170	80	35	24.00
SK240-0	240	150	170	56	38	24.00
SK300-1	300	120	240	80	35	29.80
SK300-0	300	120	240	56	38	30.70
SK370-1	370	140	285	100	45	50.50
SK370-2	370	140	285	100	45	50.50
SK400-2	400	180	300	140	60	85.00
SK500-2	500	180	380	170	70	130.00
SK600-2	600	180	480	170	70	150.00
SK650-2	650	240	500	170	70	240.00
SK800-2	800	240	600	200	85	370.00
SK1000-2	1000	260	825	250	123	600.00
SK1200-2	1200	260	—	245	123	850.00

Scroll the table sideways for all 7 columns.

Send specs, photos, drawings, or inspection and testing requests. Your reply comes from the branch that will do the work.
