BMM

Safety hooks — With swivel eye

Name: Safety hooks — With swivel eye
Brand: BMM

Available on request

Safety hooks in 6 sizes, 0.9–10 ton WLL.

Specifications

Missing a spec? It's available on request — send us your requirement.

6 sizes available. Quote by part number, or send us the load and we'll size it.

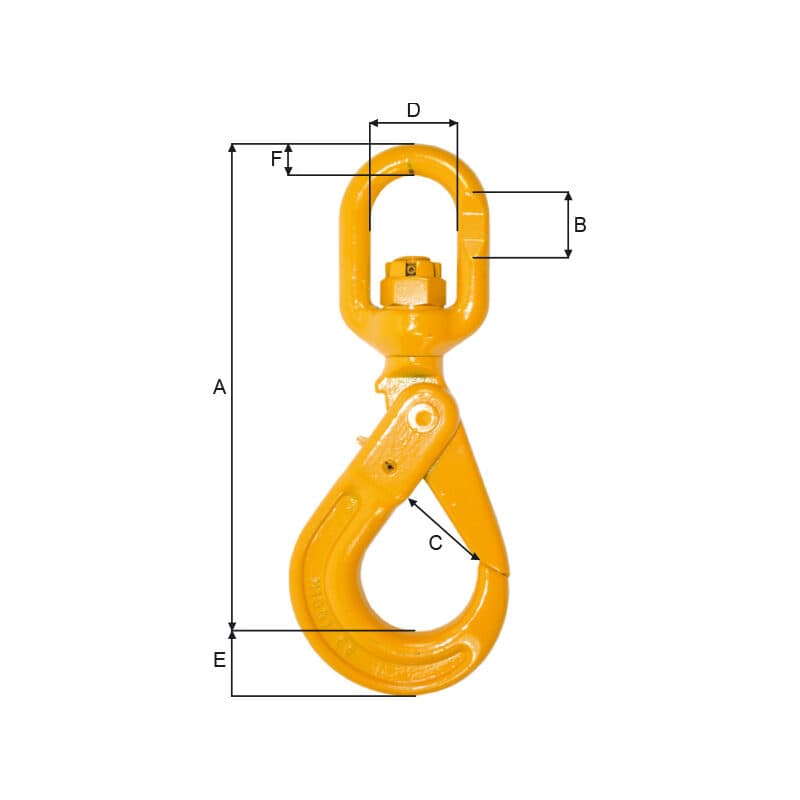

Safety hooks — With swivel eye — sizes and part numbers
Part no.	WLL(ton)	A(mm)	B(mm)	C(mm)	D(mm)	E(mm)	F(mm)	Weight(kg)
CLE06C	0.9	148	28	28	30	22	10.0	0.70
CLE07C	1.6	185	31	33	36	25	13.0	1.10
CLE10C	2.5	229	49	45	42	35	16.0	2.00
CLE13C	4.2	290	60	54	53	40	20.0	3.80
CLE16C	6.4	335	60	66	60	52	23.0	7.10
CLE19C	10.0	380	73	88	75	63	27.0	11.10

Scroll the table sideways for all 9 columns.

Send specs, photos, drawings, or inspection and testing requests. Your reply comes from the branch that will do the work.
