BMM

Safety hooks (CL06C–CL16C)

Name: Safety hooks (CL06C–CL16C)
Brand: BMM

Available on request

Safety hooks in 5 sizes, 1–8 ton WLL.

Specifications

Working load limit	1–8 ton
Sizes tabulated	5

Missing a spec? It's available on request — send us your requirement.

5 sizes available. Quote by part number, or send us the load and we'll size it.

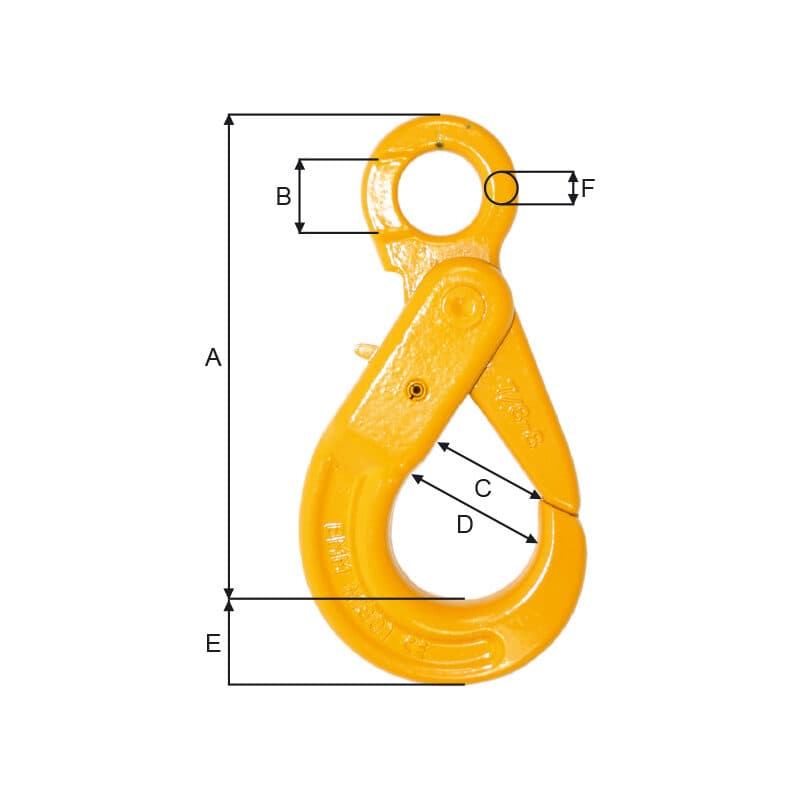

Safety hooks (CL06C–CL16C) — sizes and part numbers
Part no.	WLL 4:1(ton)	A(mm)	B(mm)	C(mm)	D(mm)	E(mm)	F(mm)	Weight(kg)
CL06C	1.0	108	23	29	34	21	10	0.50
CL07C	2.0	134	24	37	45	25	11	0.80
CL10C	3.2	170	32	48	58	34	14	1.60
CL13C	5.1	210	40	55	68	40	18	3.00
CL16C	8.0	254	50	68	83	53	22	6.00

Scroll the table sideways for all 9 columns.

The hook is also available with dacromet surface treatment for improved protection against corrosion.
