BMM

Recessed rings — High tensile steel

Available on request

Recessed rings in 2 sizes, 8–10 ton WLL.

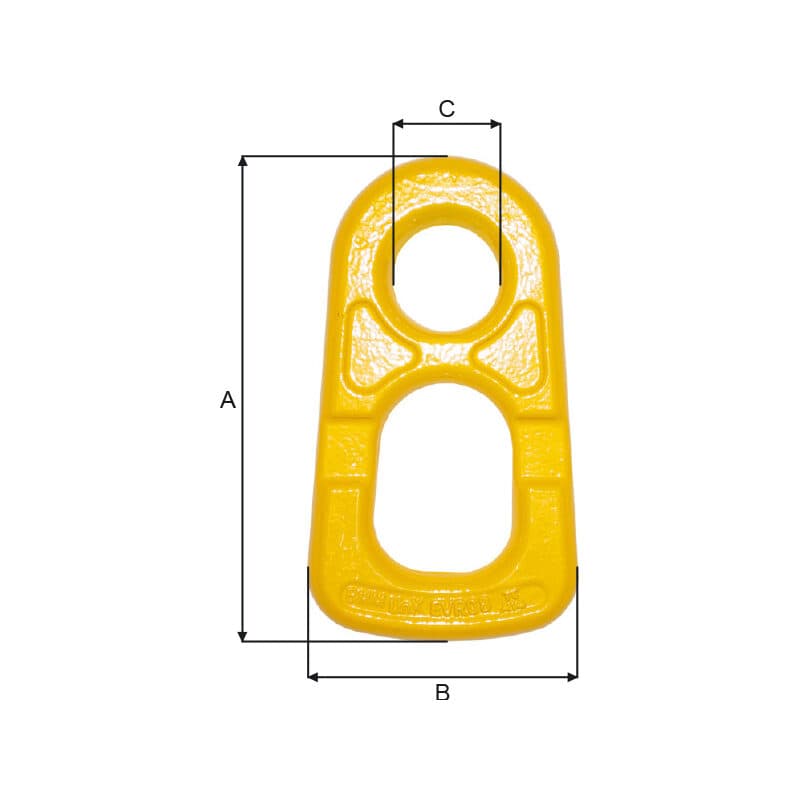

Recessed rings — High tensile steel — manufacturer dimension drawing

Specifications

ConfigurationHigh tensile steel
Working load limit8–10 ton
Sizes tabulated2

Missing a spec? It's available on request — send us your requirement.

Sizes & part numbers

2 sizes available. Quote by part number, or send us the load and we'll size it.

Recessed rings — High tensile steel — sizes and part numbers
Part no.WLL 5:1(ton)Thickness(mm)A(mm)B(mm)C(mm)Recessed link(mm)Weight(kg)
EVR088.0221759738151.4
EVR1010.02520514040172.5

Scroll the table sideways for all 8 columns.
