BMM

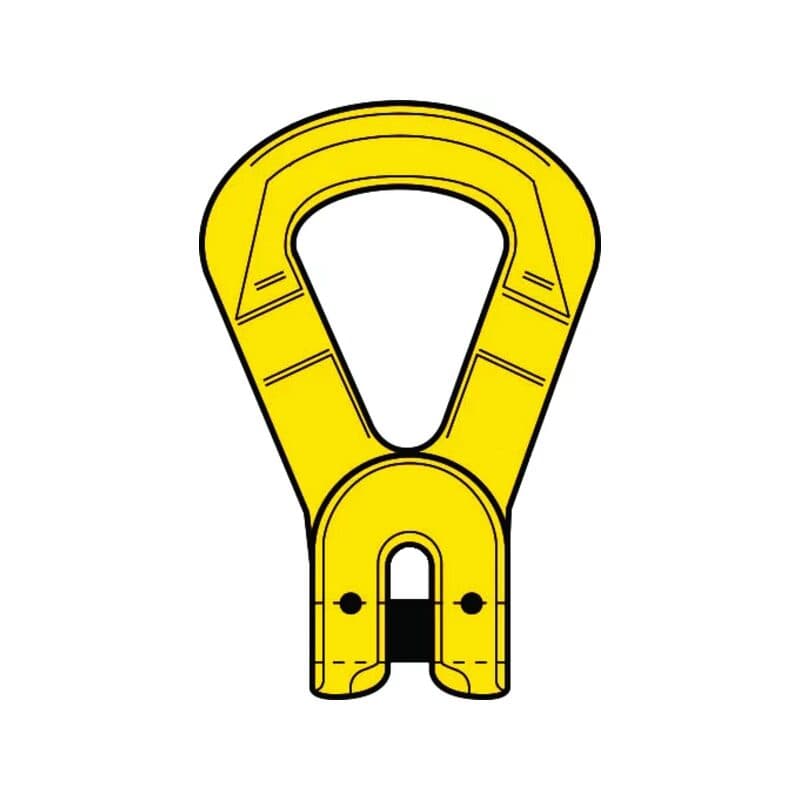

Recessed links w/ CLEVIS

Name: Recessed links w/ CLEVIS
Brand: BMM

Available on request

Recessed links w/ CLEVIS in 2 sizes, 5–8 ton WLL.

Specifications

Working load limit	5–8 ton
Sizes tabulated	2

Missing a spec? It's available on request — send us your requirement.

2 sizes available. Quote by part number, or send us the load and we'll size it.

Recessed links w/ CLEVIS — sizes and part numbers
Part no.	WLL 5:1	Chain dia.(mm)	R(mm)	W(mm)	D(mm)	B(mm)	S(mm)	Weight(kg)
EVRCL05	5.0	13	123	116	64	86	22	1.95
EVRCL08	8.0	16	156	156	89	108	27	2.72

Scroll the table sideways for all 9 columns.

Send specs, photos, drawings, or inspection and testing requests. Your reply comes from the branch that will do the work.
