BMM

Master links (EVM08XL–EVM200)

Name: Master links (EVM08XL–EVM200)
Brand: BMM

Available on request

Master links in 5 sizes, 8–20 ton WLL.

Specifications

Missing a spec? It's available on request — send us your requirement.

5 sizes available. Quote by part number, or send us the load and we'll size it.

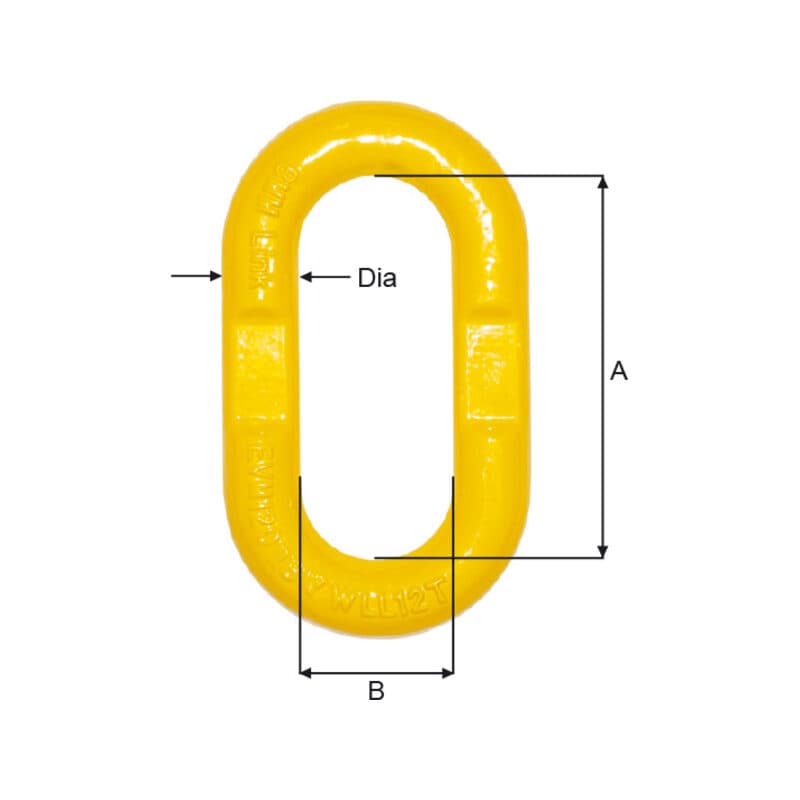

Master links (EVM08XL–EVM200) — sizes and part numbers
Part no.	WLL 5:1(ton)	Dia.(mm)	A(mm)	B(mm)	Recessed link(mm)	Weight(kg)
EVM08XL	8.0	22	108	54	13.5	0.9
EVM100	10.0	21	97	36	14	0.8
EVM120	12.0	25	118	48	16	1.7
EVM150	15.0	30	165	75	17	2.8
EVM200	20.0	34	180	85	25	4.2

Scroll the table sideways for all 7 columns.

Send specs, photos, drawings, or inspection and testing requests. Your reply comes from the branch that will do the work.
