Trawlfloats with centerhole

Available on request

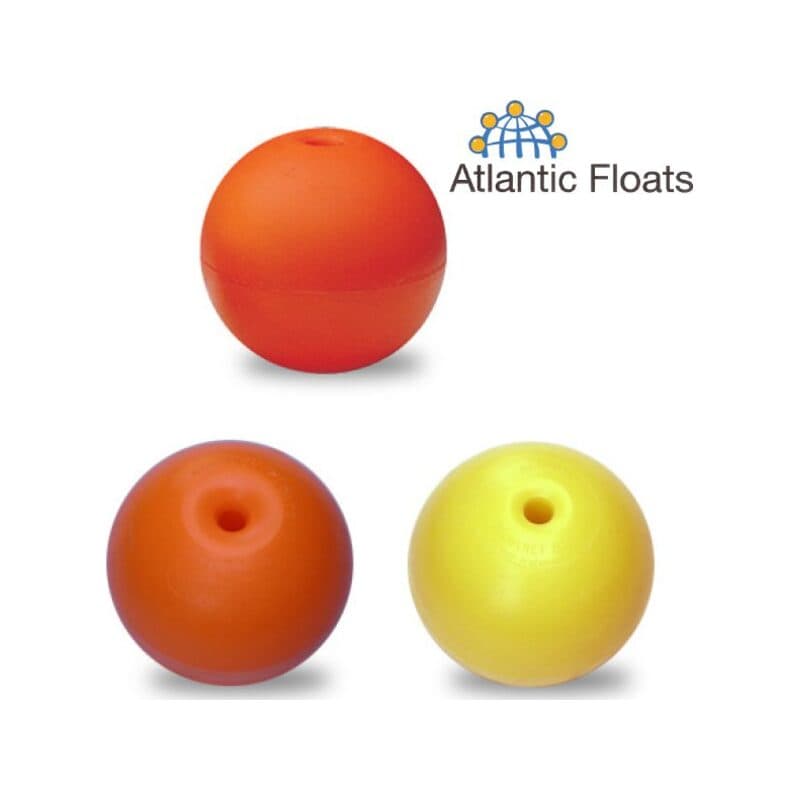

Trawlfloats with centerhole in 16 sizes.

Specifications

Diameter range	8–14 inch
Sizes tabulated	16

Missing a spec? It's available on request — send us your requirement.

16 sizes available. Quote by part number, or send us the load and we'll size it.

Trawlfloats with centerhole — sizes and part numbers
Part no.	Dia.(inch)	Working depth	Color	Hole size(mm)	Volume(liter)	Weight(gr)	Buoyancy(gr)
NP08-0400-CO	8.0	450	Orange	22.0	4	875	3320
NP08-0300-CR	8.0	300	Red	20.0	4	621	3380
NP08-0950-CY	8.0	950	Yellow	22.0	4	1300	2685
NP08-1050-CO	8.0	1050	Orange	23.0	4	1300	2685
NP08-1200-CY	8.0	1200	Yellow	21.0	4	1500	2490
NP08-1200-CO	8.0	1200	Orange	21.0	4	1500	2490
NP08-1400-CW	8.0	1400	White	21.0	4	1720	2300
NP08-2000-CW	8.0	2000	White	21.0	4	1760	2110
NP08-3200-CW	8.0	3200	White	23.0	4	1956	1800
NP95-2000-CG	9.5	2000	Green	26.0	7	2822	3900
NP95-1100-CO	9.5	1100	Yellow	26.0	7	2423	4280
NP11-0600-CO	11.0	600	Orange	24.5	11	2490	8610
NP11-0950-CR	11.0	950	Red	24.5	11	3210	7580
NP11-0950-CY	11.0	950	Yellow	24.5	11	3210	7580
NP11-1500-CW	11.0	1500	White	24.5	11	3730	6950
NP14-0800-CW	14.0	800	White	30.0	25	7145	17600

Scroll the table sideways for all 8 columns.

Send specs, photos, drawings, or inspection and testing requests. Your reply comes from the branch that will do the work.
