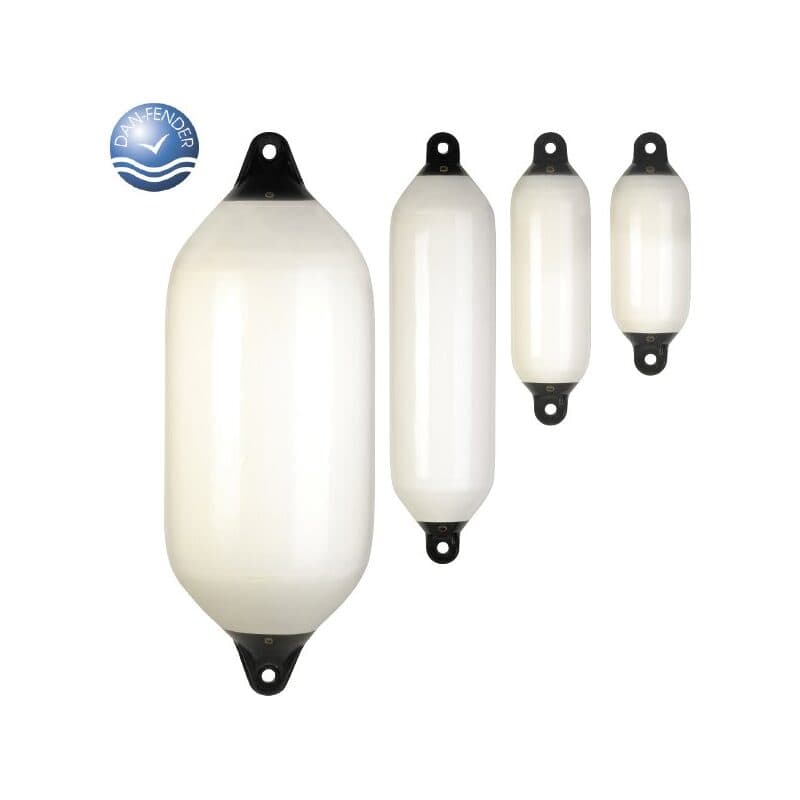

Inflatable fenders with valves — White

Available on request

Inflatable fenders with valves in 12 sizes.

Specifications

Missing a spec? It's available on request — send us your requirement.

12 sizes available. Quote by part number, or send us the load and we'll size it.

Inflatable fenders with valves — White — sizes and part numbers
Part no.	Dia.(mm)	Length(mm)	Buoyancy(kg)	Eye dia.(mm)
JF0520	125	540	5.0	18
JF0623	150	645	6.5	18
JF0822	200	635	14.0	28
JF0827	200	765	23.0	28
JF0839	200	1055	34.0	28
JF1025	250	700	29.0	28
JF1035	250	940	39.0	28
JF1232	300	880	43.0	28
JF1242	300	1130	55.0	28
JF1550	380	1370	116.0	32
JF2255	550	1465	215.0	32
JF3282	800	2050	720.0	32

Scroll the table sideways for all 5 columns.

Send specs, photos, drawings, or inspection and testing requests. Your reply comes from the branch that will do the work.
