Triangles with swivels (E4-250–E4-300)

Available on request

Triangles with swivels in 2 sizes, 5.3–9 ton WLL.

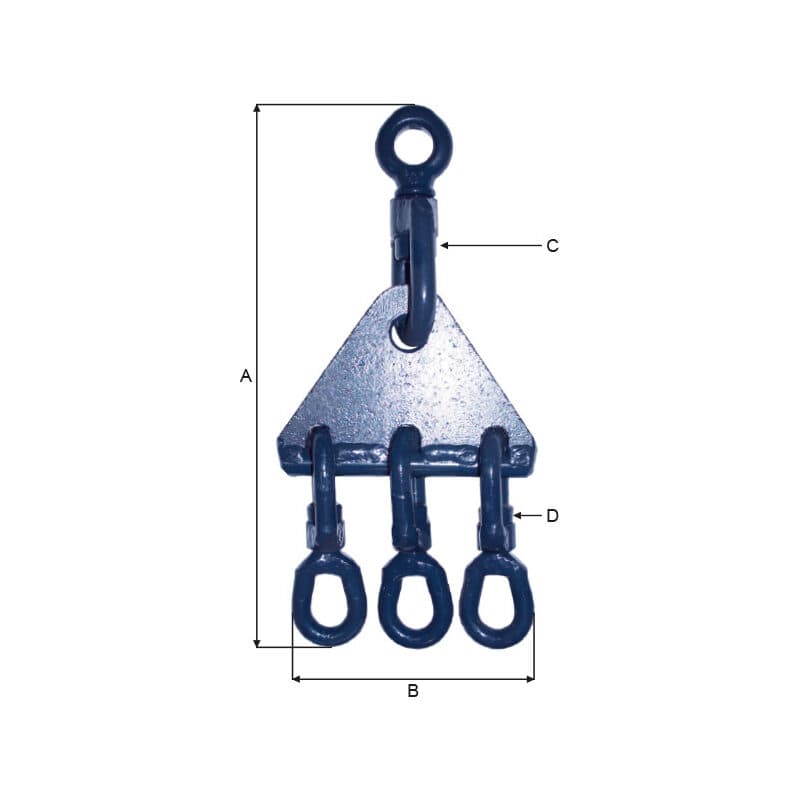

Triangles with swivels (E4-250–E4-300) — manufacturer dimension drawing

Specifications

Working load limit5.3–9 ton
Sizes tabulated2

Missing a spec? It's available on request — send us your requirement.

Sizes & part numbers

2 sizes available. Quote by part number, or send us the load and we'll size it.

Triangles with swivels (E4-250–E4-300) — sizes and part numbers
Part no.WLL 5:1(ton)A(mm)B(mm)CDPlate(mm)Weight(kg)
E4-2505.3480250A22FOA19ST20.09.50
E4-3009.0570300A28FOA22FO25.017.50

Scroll the table sideways for all 8 columns.

  • Available with variable numbers of swivels and types.
