Triangles with swivels (E4-100–E4-130)

Available on request

Triangles with swivels in 2 sizes, 2.4–3.8 ton WLL.

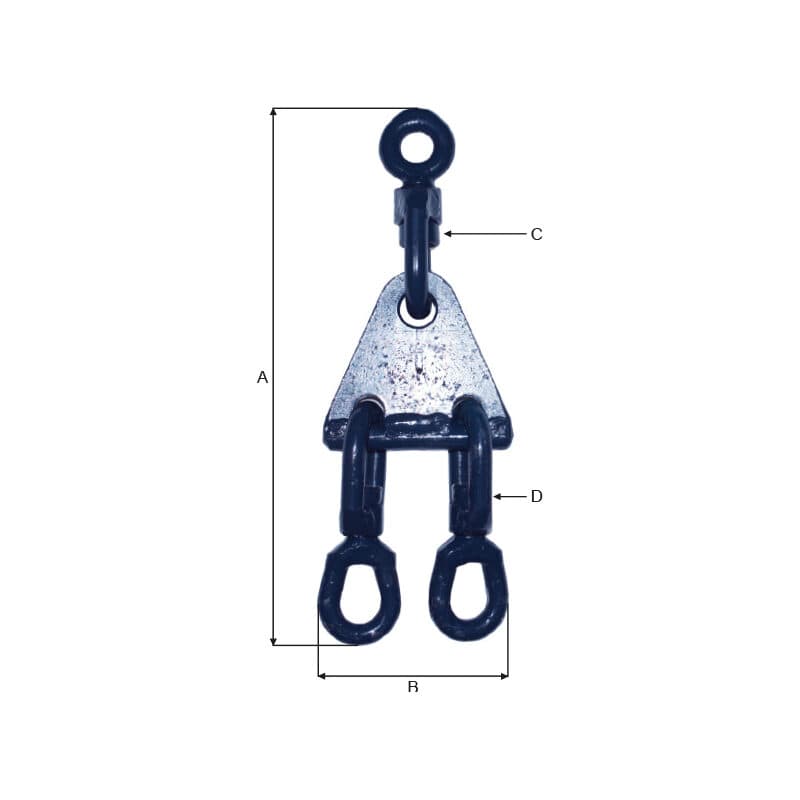

Triangles with swivels (E4-100–E4-130) — manufacturer dimension drawing

Specifications

Working load limit2.4–3.8 ton
Sizes tabulated2

Missing a spec? It's available on request — send us your requirement.

Sizes & part numbers

2 sizes available. Quote by part number, or send us the load and we'll size it.

Triangles with swivels (E4-100–E4-130) — sizes and part numbers
Part no.WLL 5:1(ton)A(mm)B(mm)CDPlate(mm)Weight(kg)
E4-1002.4340100A16FOA12ST15.02.90
E4-1303.8440130A19FOA19ST20.05.50

Scroll the table sideways for all 8 columns.

  • Available with variable numbers of swivels and types.
